Dakota Digital Round Digital Gauge W/5 Senders

The ODYR-19-7 Quad Air Pressure gauge can monitor and simultaneously display the front and rear pressure on front/ rear or four wheel independent air ride systems to display each air bag for proper pressure. Selectable second screen displays tank pressure.

Dakota Digital Odyssey Series II instruments offer a high brightness, non-glare vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Odyssey Series II instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!

Range:
0- 300 psi.

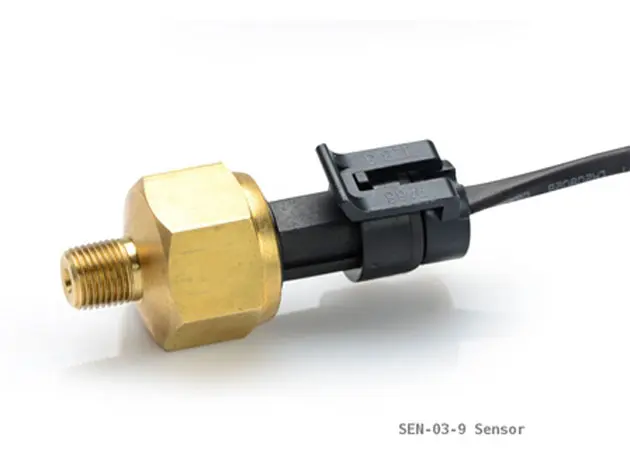

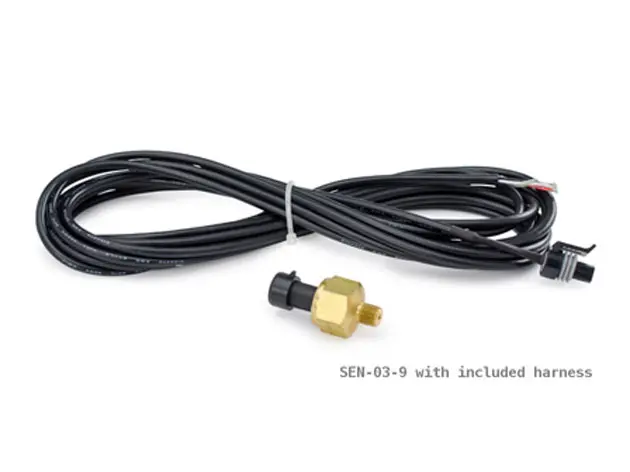

A single sensor will be required for each pressure reading. For example, a full independent (front/back/side to side) air system would require 4 sensors (1 for each airbag). A fifth sensor (SEN-03-9)  can be added to monitor the air tank pressure if desired.


Resolution:
1 psi

Separate control box for easy installation.

• User adjustable high and low warning points can trigger a external light or buzzer. (not included)
• Night dimming.
• Choice of either Black or Chrome bezel.
• Machined aluminum housing.

** Required BIM-19-2 Included
