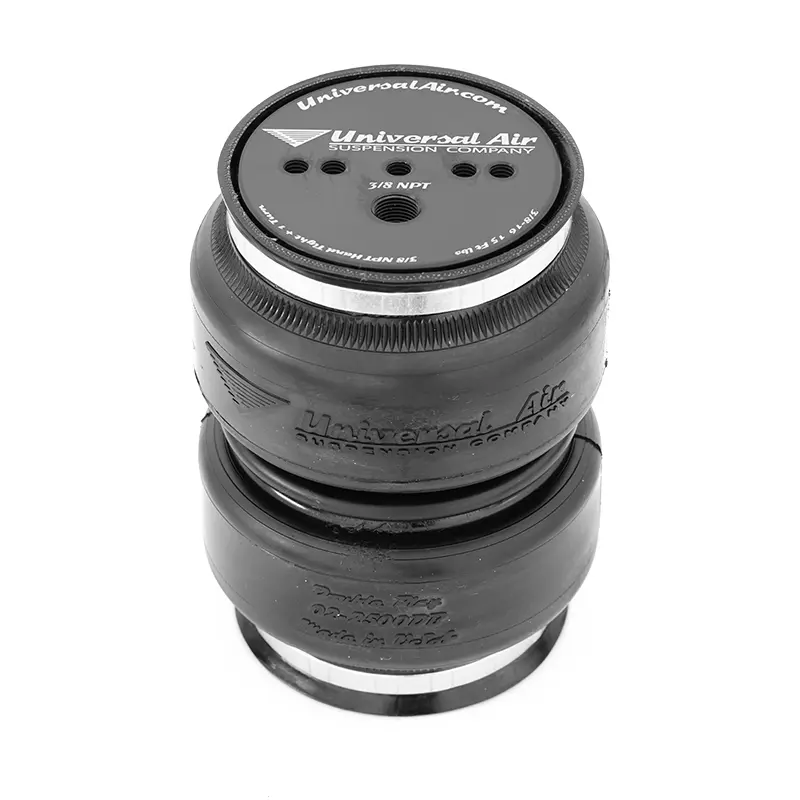

Double Play
By Universal Air
A punchy Headline
Double Convoluted for Rear Suspension.
The Double Play is the perfect choice for your rear suspension that doesn't angle too much. Engineered for an excellent ride quality and higher travel in the same diameter size.
Recommended Mounting is directly to the axel in a rear suspension application, or just Infront of the axel on a rear trailing arm setup. Like in a C-10 or Impala.
The bag IS NOT designed for a front control arm suspension. The Air House 2 is the recommended bag for front suspension.
Higher Travel
Double bellow construction greatly increases the travel of the air spring but at the cost for angle capacity and Hi Load applications.
Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated.
Specifications
3.25" Collapsed Height
11" Extended Height
5.875" Max Diameter
Available in 1/4", 3/8" and 1/2" NPT
4.75" - 7.75" Optimum Ride Height
Up to 2500 Lbs. Force at 115 PSI
Heavy Duty Thick Rubber Construction
525 PSI Tested Burst Pressure
Rear Suspension Installation
Straight or Slight Angled Installation
Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps
A punchy Headline
Seeing is Believing!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Port Size | 1/4 or 3/8 or 1/2 |
