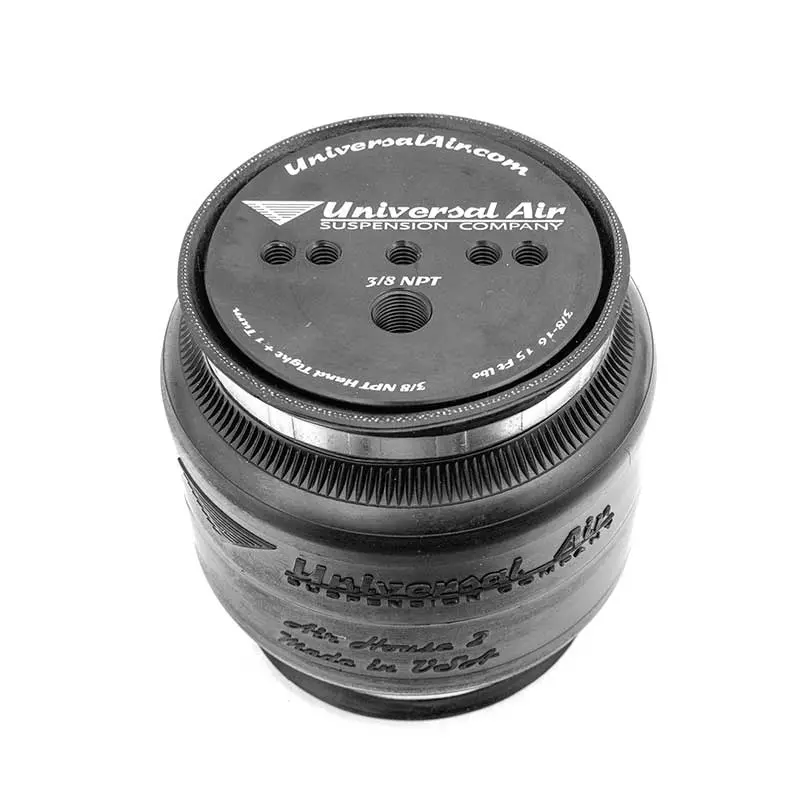

Air House 2
By Universal Air
A punchy Headline
Great things come in compact packages!
The Air House 2 was designed to maximize the available space for your typical 6" Diameter bag with room to spare. With a Super Short 2" Collapsed, and massive 8.5" extended height, resulting in 6.5" of available bag travel and even more at the Wheels with leveraged suspension!
More travel then most bags in the same diameter class. Best suited for your Control Arm Front suspension, or Link rear system where the bags are mounted on the bar to take advantage of leverage.
A punchy Headline
No Center Ring
Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.
Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated. Minimizing frame cutting in most applications.
With the added stability there is a very noticeable reduction in vehicle "sway" compared to a typical double convoluted.
Specifications
2" Collapsed Height
8.5" Extended Height
5.875" Max Diameter
Available in 1/4", 3/8" and 1/2" NPT
3.5" - 5.25" Optimum Ride Height
Up to 2600 Lbs. Force at 115 PSI
Heavy Duty Thick Rubber Construction
615 PSI Tested Burst Pressure
Front or Rear Installation
Straight or Angled Installation
Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps
A punchy Headline
Seeing is Believing!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Port Size | 1/4 or 3/8 or 1/2 |
