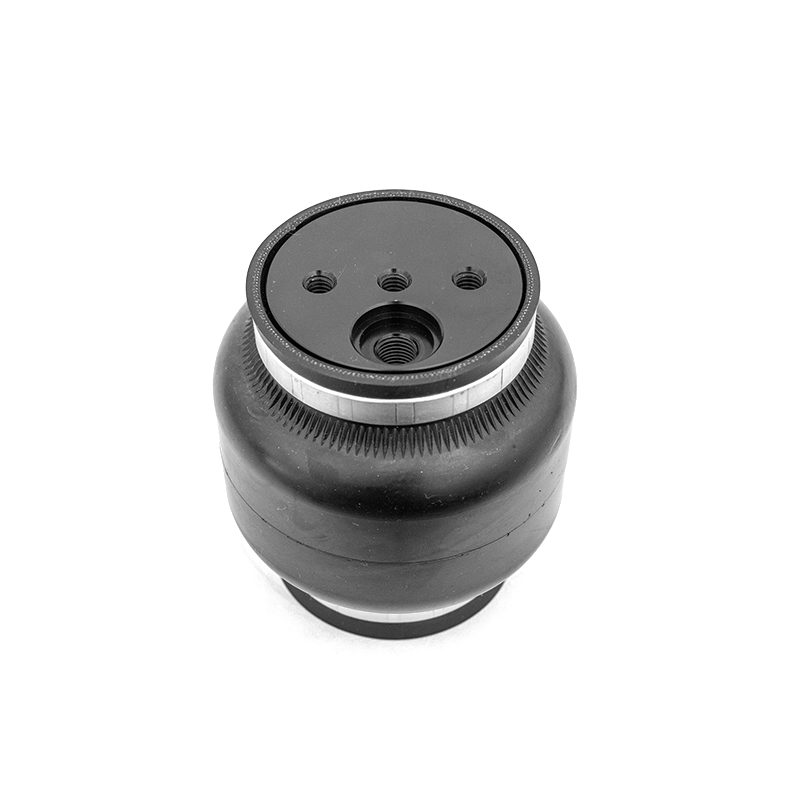

Air House Micro
By Universal Air
Great things come in Micro packages!
The Air House Micro was designed to be an even more Miniature version of our Air House 2. With a maximum diameter of 4.75", it tiny!
With a Super Short 2" Collapsed, and a respectable 7" extended height, results in 5" of available bag travel. With the smaller diameter, it will provide a firmer ride compared to the Air House Mini and Air House 2.
Best suited for your Control Arm suspension where the bags are mounted on arm to take advantage of leverage. Most popular application is newer vehicles with complex, tight rear suspension and your Crazy Projects.
No Center Ring
Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.
Maximum Outside Diameter when compressed is 4.75" and will shrink down to about 4.625" when inflated.
Specifications
2" Collapsed Height
7" Extended Height
4.75" Max Diameter
1/4" NPT, 1/4" Recessed in Cap
3.25" - 4.25" Optimum Ride Height
Up to 1400 Lbs. Force at 115 PSI
Heavy Duty Thick Rubber Construction
618 PSI Tested Burst Pressure
Front or Rear Installation
Straight or Angled Installation
Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps
