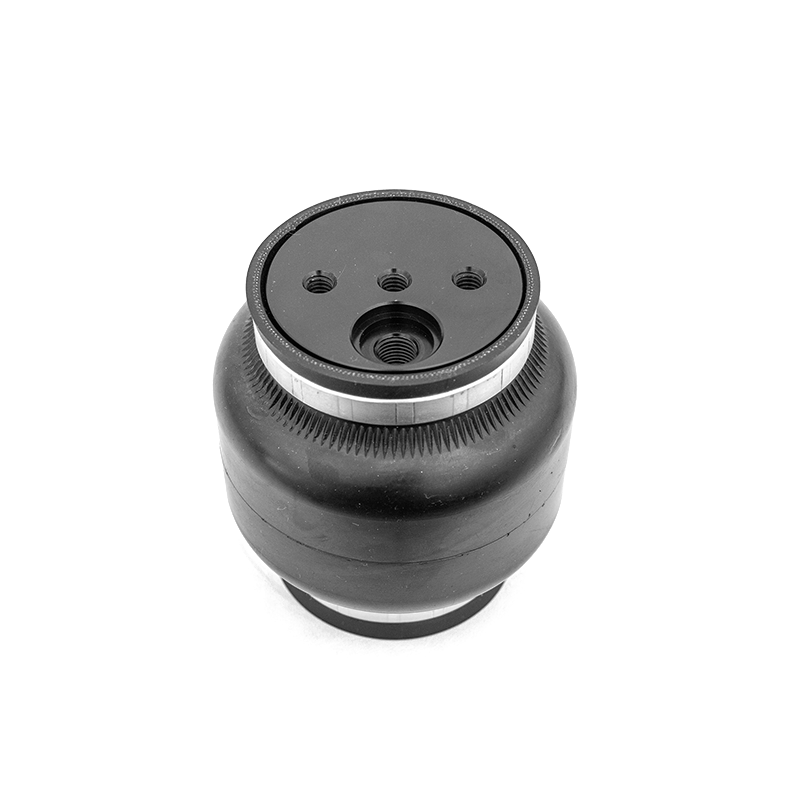

Air House Micro Air Bag

https://universalair-uas.odoo.com/web/image/product.template/656/image_1920?unique=1f29da1
(0 review)

125.00 125.0 USD 125.00

125.00

    This combination does not exist.


    Barcode: 655255414319
    Shipping Weight: 2.08 lb
    Internal Reference: 02-AH4.75-14
    Brand: Universal Air
    Manufacture Part Number: 02-AH4.75-14

    Air House Micro

    By Universal Air

    Great things come in Micro packages!

    The Air House Micro was designed to be an even more Miniature version of our Air House 2.  With a maximum diameter of 4.75", it tiny!

    With a Super Short 2" Collapsed, and a respectable 7" extended height,  results in 5" of available bag travel.  With the smaller diameter, it will provide a firmer ride compared to the Air House Mini and Air House 2.

    Best suited for your Control Arm suspension where the bags are mounted on arm to take advantage of leverage.  Most popular application is newer vehicles with complex, tight rear suspension and your Crazy Projects.


    No Center Ring

    Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.

    Maximum Outside Diameter when compressed is 4.75" and will shrink down to about 4.625" when inflated.

    Specifications

    2" Collapsed Height

    7" Extended Height

    4.75" Max Diameter

    1/4" NPT, 1/4" Recessed in Cap

    3.25" - 4.25" Optimum Ride Height

    Up to 1400 Lbs. Force at 115 PSI

    Heavy Duty Thick Rubber Construction

    618 PSI Tested Burst Pressure

    Front or Rear Installation

    Straight or Angled Installation

    Industry Standard Bolt Pattern

    Machined 6061 Aluminum Caps
