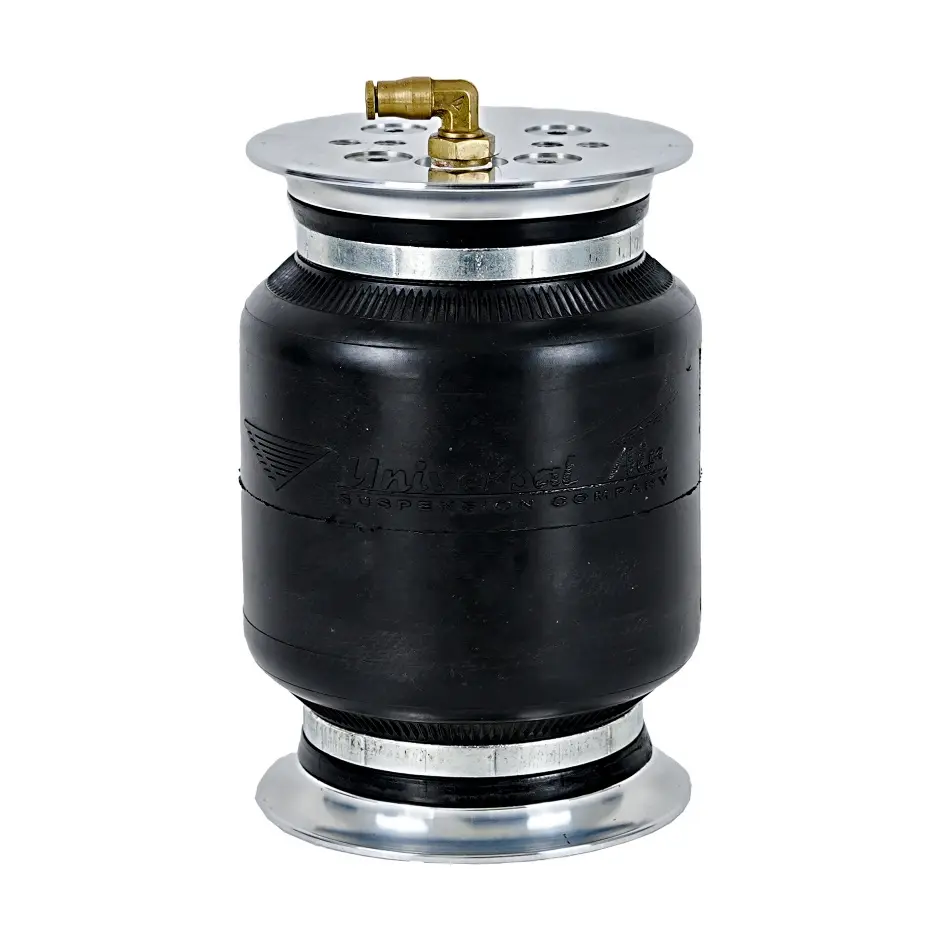

![[02-AH5.25XL-14] Air House Mini XL Air Bag With Beadplates](/web/image/product.product/33631/image_1024/%5B02-AH5.25XL-14%5D%20Air%20House%20Mini%20XL%20Air%20Bag%20With%20Beadplates?unique=0d39021)
![[02-AH5.25XL-14] Air House Mini XL Air Bag With Beadplates](/web/image/product.product/33631/image_128/%5B02-AH5.25XL-14%5D%20Air%20House%20Mini%20XL%20Air%20Bag%20With%20Beadplates?unique=0d39021)
Air House Mini XL
By Universal Air
The Air House Mini XL was designed to perform. Solid Aluminum Caps & Bead plates. 5.25" diameter for extra clearance.
With a 3.0" Collapsed, and an Impressive 10.5" Extended height, results in 7.5" of available bag travel.
With rolling both Top and Bottom Results in a higher angle capacity and cap misalignment.
Aluminum Threads in the bead plates on top of the extended travel will keep your bottom inserts from being pulled out.
No Center Ring
Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.
Maximum Outside Diameter when compressed is 5.25" and will shrink down to about 5.125" when inflated.
Specifications
3" Collapsed Height
10.5" Extended Height
5.25" Max Diameter
3/8" NPT, 1/4" Recessed in Cap
4.25" - 7" Optimum Ride Height
Up to 1900 Lbs. Force at 115 PSI
Heavy Duty Thick Rubber Construction
537 PSI Tested Burst Pressure
Front or Rear Installation
Straight or Angled Installation
Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps
