Air House 2 Aerosport
By Universal Air
The Air House 2 Aerosport was designed for applications wanting high spring rate at lower heights for the low ride height. With the shorter bellow, the bag will be in a more extended state at a lower height.

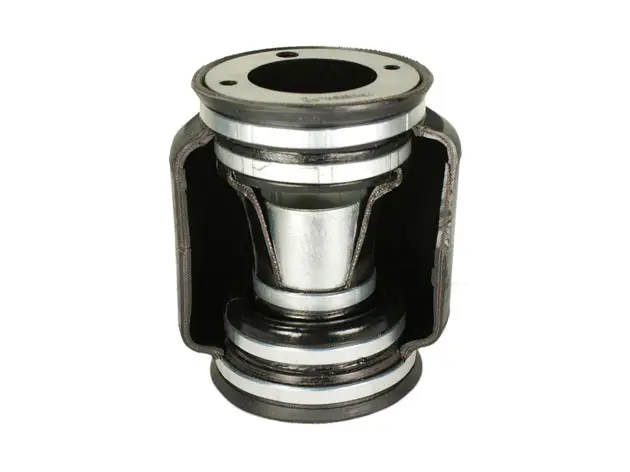

The Aerosport series features our Patented Internal Chamber Technology. With the inner and outer bellow, air will go in the middle like a donut. There is no moving seals.
The bag can be slipped over any strut that is 2.14" or smaller in diameter. This will include your aftermarket coilovers, aftermarket struts, OEM struts, and hybrid systems.
The Bag should be fitted to the struts with brackets to insure the bag stays fairly straight to prevent internal rubbing of the inner chamber. For your McPherson front suspension, some type of bearing is required to insure the bag will not bind when you turn your steering.
For Installation Instructions and tips please view our Online Knowledge Base
With the internal chamber. We are able to install the bag into applications where the cap sealed to the shaft will not provide adequate angle for the suspension to cycle properly. A slight angle of the bag is perfectly acceptable.
Specifications
4.125" Collapsed Height
8.5" Extended Height
5.875" Max Diameter
2.17" Internal Diameter
High Spring Rate
1/4" NPT Air Port Inlet
Heavy Duty Thick Rubber Construction
Patented Technology
Strut Installation
Straight or Angled Installation
3.45" Center to Center
Bolt Pattern
Machined 6061 Aluminum Caps
