Aerosport Air Bag

https://universalair-uas.odoo.com/web/image/product.template/107/image_1920?unique=a1c61b5
(0 review)

Aerosport: 4.125" Collapsed, 9.5" Extended, 2.17" Inside 5.875" Outside

$ 252.00 252.0 USD $ 252.00

$ 252.00

    This combination does not exist.

    Contact Us



    Barcode: 655255485470
    Shipping Weight: 4.91 lb
    Internal Reference: 02-ST-SB-14
    Brand: Universal Air
    Manufacture Part Number: 02-ST-SB

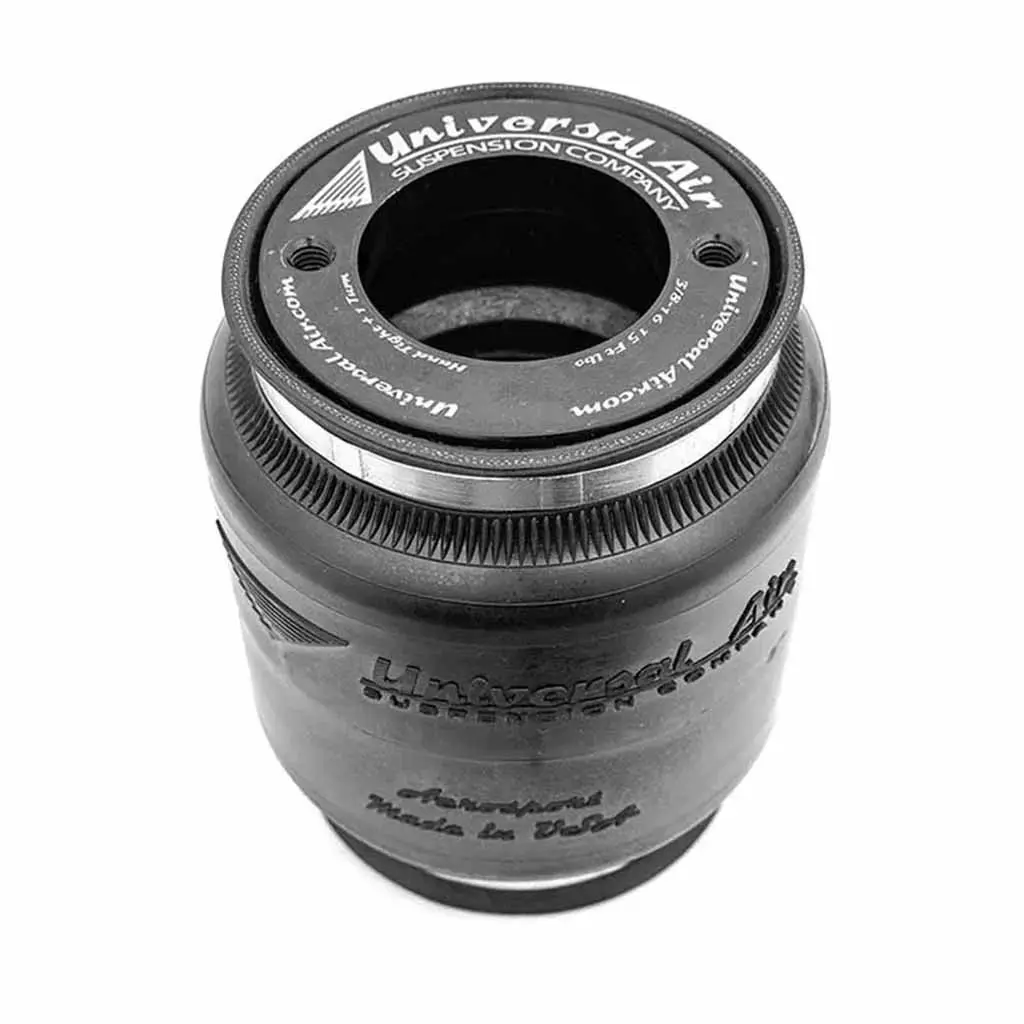

    Aerosport

    By Universal Air

    By Far our most popular slip-over style bag is our Aerosport.  This bag has been trusted in several hundreds of different applications over the years.  Originally designed to slip over Hydraulics to be able to lay out.  This bag is what put us on the map!  Need a bag to fabricate to most struts?  This is your answer.


    Aerosport inner chambers

    The Aerosport series features our Patented Internal Chamber Technology.  With the inner and outer bellow, air will go in the middle like a donut.  There is no moving seals.

    aerosport cut a way view

    The bag can be slipped over any strut that is 2.14" or smaller in diameter.  This will include your aftermarket coilovers, aftermarket struts, OEM struts, and hybrid systems.

    ​

    aerosport on ohlins coilover

    The Bag should be fitted to the struts with brackets to insure the bag stays fairly straight to prevent internal rubbing of the inner chamber.  For your McPherson front suspension, some type of bearing is required to insure the bag will not bind when you turn your steering.

    Universal Brackets

    For Installation Instructions and tips please view our Online Knowledge Base.

    Knowledge Base

    aerosport on cts shock

    With the internal chamber.  We are able to install the bag into applications where the cap sealed to the shaft will not provide adequate angle for the suspension to cycle properly.  A slight angle of the bag is perfectly acceptable.

    aerosport with spring

    Specifications

    4.125" Collapsed Height

    9.5" Extended Height

    5.875" Max Diameter

    2.17" Internal Diameter

    Sporty Spring Rate

    1/4" NPT Air Port Inlet

    Heavy Duty Thick Rubber Construction

    Patented Technology

    Strut Installation

    Straight or Angled Installation

    3.45" Center to Center

     Bolt Pattern

    Machined 6061 Aluminum Caps

    Seeing is Believing!
