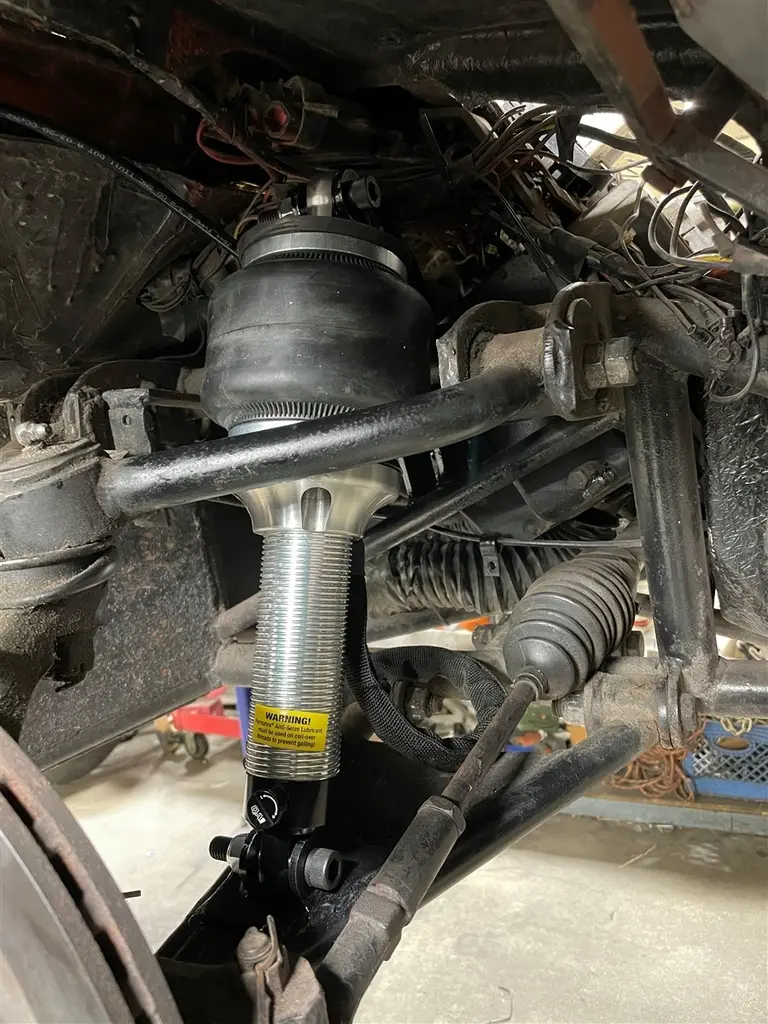

This air spring is designed to convert your QA1 into an Air Shock. We will loose 5/8" of travel for bag sealing.
**Designed for DS or DD Shocks. Non Adjustable ALN will not fit
Air Spring Dimensions 2" - 7.5" 5.5" Travel 5.25" Diameter compressed ~16 LBS Per PSI at 2" Travel Ride Height 200 PSI
Kit includes Air spring for QA1 Shock Threaded Adapter to QA1 shock Leader hose with 1/4" NPT Female
MADE IN THE USA!
QA1 Size with Mini
QA1 Collapsed
Collapsed
Extended
Travel
8.75
9.375
11.125
1.75*
9.5
10.125
12.75
2.625*
10.125
10.75
14
3.25
11.125
11.75
15
3.25
11.625
12.25
16.875
4.625
12.625
13.25
18.75
5.5
13
13.625
19.125
5.5 **
15
15.625
21.125
5.5 **
*Not recommended with such short travel. **Bag has 5.5" of travel. Shock travel will be limited.
