Air House Mini Air Bag

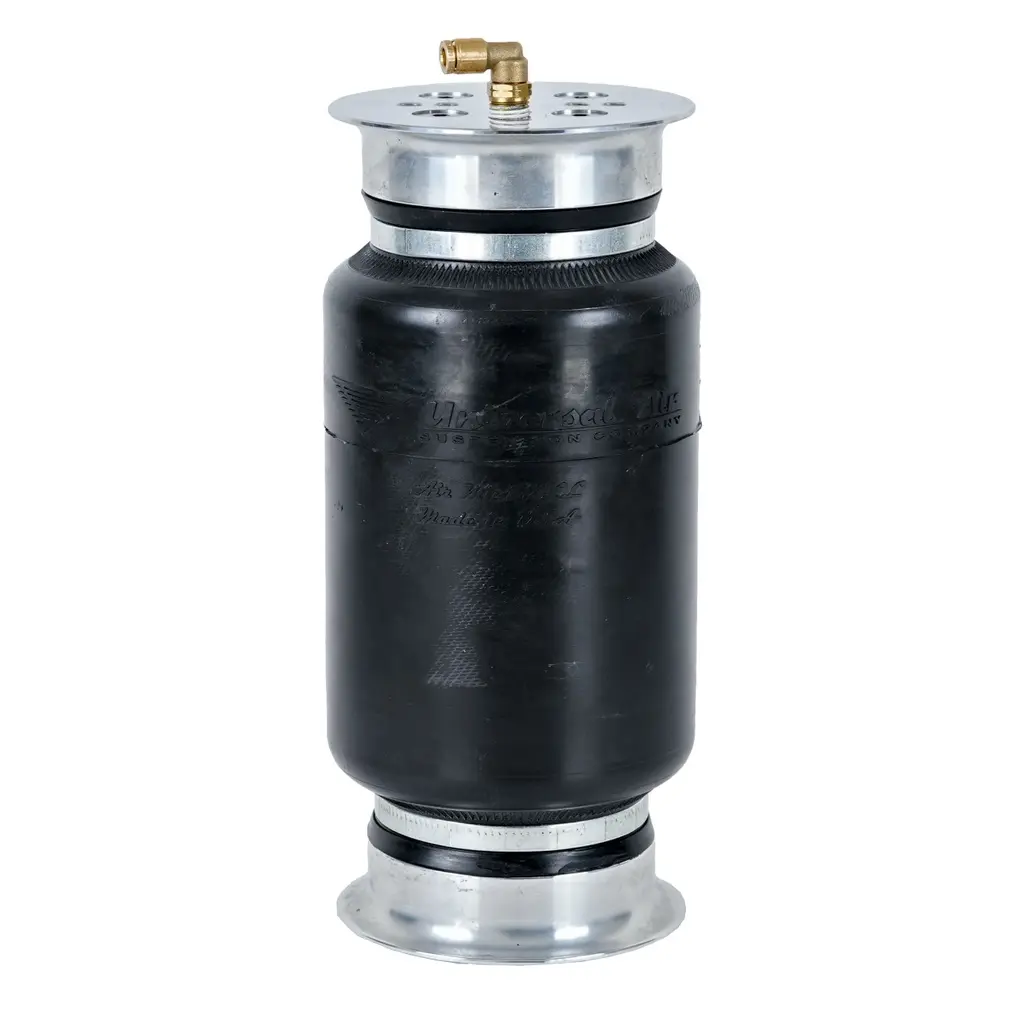

U9000 Air Bag With Beadplates

(0 review)

4.25" - 15" 1/4" NPT Port 5.25" Diameter

Barcode: 3182294152744
Shipping Weight: 6
Internal Reference: 02-U9000
Brand: Universal Air

Air House Mini XXL U9000

By Universal Air

The Air House Mini XXL was designed to be a Direct Replacement for the F9000 but out perform. With up to 30% more Load Capacity then your standard F9000 in a smaller package. Solid Aluminum Caps & Bead plates. 5.25" diameter for extra clearance.

With a 4.25" Collapsed, and an Impressive 15" Extended height, results in 11.75" of available bag travel. With rolling both Top and Bottom Results in a higher angle capacity and cap misalignment compared to a standard 9000. Aluminum Threads in the bead plates on top of the extended travel will keep your bottom inserts from being pulled out.

No Center Ring

Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.

Maximum Outside Diameter when compressed is 5.25" and will shrink down to about 5.125" when inflated.

Specifications

4.25" Collapsed Height

15" Extended Height

5.25" Max Diameter

1/4" NPT

5.5" - 9.5" Optimum Ride Height

Up to 1900 Lbs. Force at 115 PSI

Heavy Duty Thick Rubber Construction

537 PSI Tested Burst Pressure

Front or Rear Installation

Straight or Angled Installation

Industry Standard Bolt Pattern

Machined 6061 Aluminum Caps
