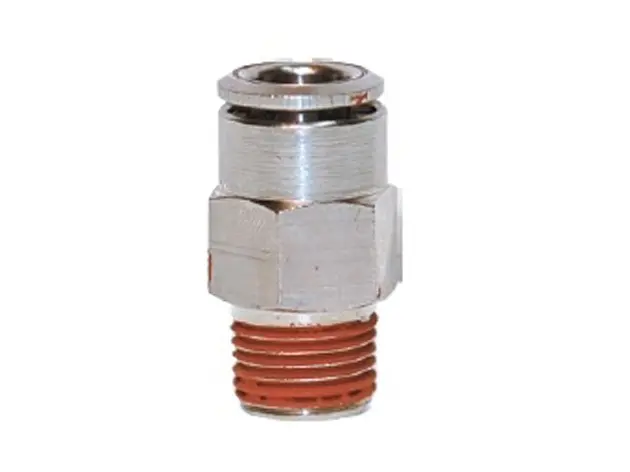

**Nickel Plated** 1/8" Hose 1/4" NPT Straight Fitting

https://universalair-uas.odoo.com/web/image/product.template/64/image_1920?unique=13cf10b
(0 review)

$ 2.88 2.88 USD $ 2.88

$ 2.88

    This combination does not exist.

    Contact Us



    Barcode: 655255126502
    Shipping Weight: 0.04 lb
    Internal Reference: 05-70-2-4
    Brand: Camozzi Automation
    Manufacture Part Number: C6510 02-04

    **Nickel Plated** 1/8" Hose 1/4" NPT Straight Fitting

    1/8" Hose 1/4" NPT Straight Fitting Nickel Plated

    Features

    • Meets all requirements for Federal DOT Standard 571.106* 49 CFR Ch. V
    • Temperature Range: -40°F to 200°F
    • Working Pressure: 0 - 1000 psi
    • Electrolytic Nickel Plated brass body with a low temperature BUNA-N O-ring
    • For use with DOT approved Nylon® tubing
    • Compressed air applications

    Technical Specs

    • Material Electrolytic Nickel-plated brass OT58 UNI 5705, Tube-support/insert in brass
    • Collet Brass OT58 UNI 5705, nickel plated
    • O-ring Low temperature Buna-N (NBR)
    • Threads 1/8", 1/4", 3/8", 1/2" NPTF
    • Operating pressure 0 - 1000 psi
    • Fluid Compressed air
