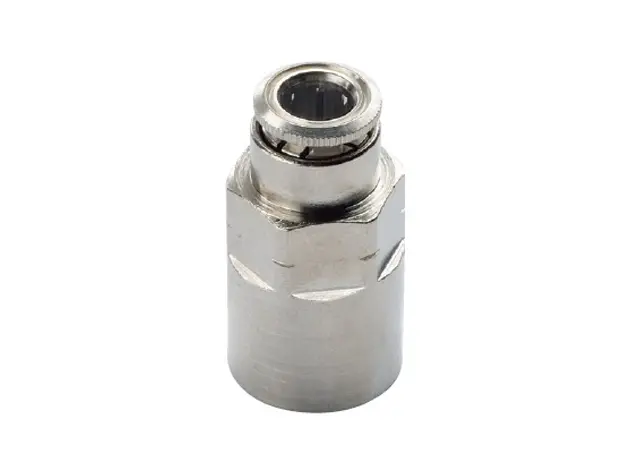

**Nickel Plated** 3/8" Hose 3/8" NPT Female Thread DOT Approved Fitting

https://www.universalair.com/web/image/product.template/81/image_1920?unique=13cf10b
(0 review)

$ 12.87 12.870000000000001 USD $ 12.87

$ 12.87

    This combination does not exist.

    Contact Us



    Barcode: 655255051262
    Shipping Weight: 0.08 lb
    Internal Reference: 05-73-6-6
    Brand: Camozzi Automation
    Manufacture Part Number: D6463 06-06

    **Nickel Plated** 3/8" Hose 3/8" NPT Female Thread DOT Approved Fitting

    3/8" Hose 3/8" Female NPT Fitting Nickel Plated

    Features

    • Meets all requirements for Federal DOT Standard 571.106* 49 CFR Ch. V
    • Temperature Range: -40°F to 200°F
    • Working Pressure: 0 - 1000 psi
    • Electrolytic Nickel Plated brass body with a low temperature BUNA-N O-ring
    • For use with DOT approved Nylon® tubing
    • Compressed air applications

    Technical Specs

    • Material Electrolytic Nickel-plated brass OT58 UNI 5705, Tube-support/insert in brass
    • Collet Brass OT58 UNI 5705, nickel plated
    • O-ring Low temperature Buna-N (NBR)
    • Threads 1/8", 1/4", 3/8", 1/2" NPTF
    • Operating pressure 0 - 1000 psi
    • Fluid Compressed air
