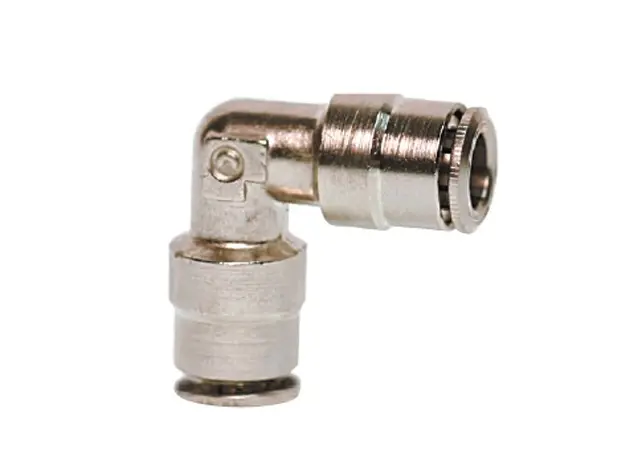

**Nickel Plated** 3/8" Hose Union 90 Degree Elbow DOT Approved Fitting

(0 review)
$ 7.72 $ 7.72

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 655255135085
Shipping Weight: 0.07 lb
Internal Reference: 05-76-6
Brand: Camozzi Automation
Manufacture Part Number: ND6550 06-00

**Nickel Plated** 3/8" Hose Union 90 Degree Elbow DOT Approved Fitting

3/8" Hose Union 90* Nickel Plated

Features

  • Meets all requirements for Federal DOT Standard 571.106* 49 CFR Ch. V
  • Temperature Range: -40°F to 200°F
  • Working Pressure: 0 - 1000 psi
  • Electrolytic Nickel Plated brass body with a low temperature BUNA-N O-ring
  • For use with DOT approved Nylon® tubing
  • Compressed air applications

Technical Specs

  • Material Electrolytic Nickel-plated brass OT58 UNI 5705, Tube-support/insert in brass
  • Collet Brass OT58 UNI 5705, nickel plated
  • O-ring Low temperature Buna-N (NBR)
  • Threads 1/8", 1/4", 3/8", 1/2" NPTF
  • Operating pressure 0 - 1000 psi
  • Fluid Compressed air
