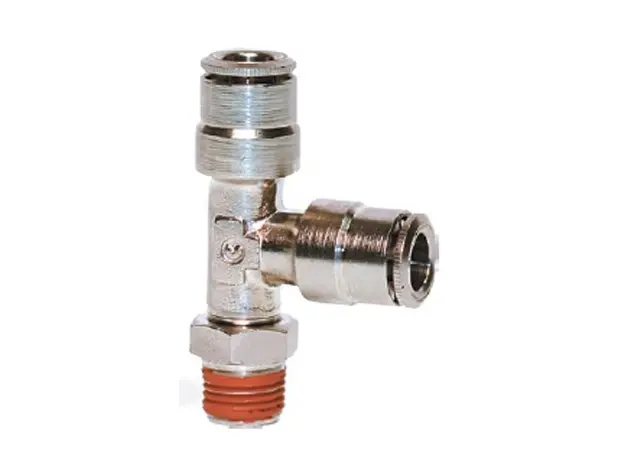

**Nickel Plated** 3/8" Hose 3/8" NPT Run T Swivel DOT Approved Fitting
3/8" Hose 3/8" NPT Run Tee Nickel Plated
Features
- Meets all requirements for Federal DOT Standard 571.106* 49 CFR Ch. V
- Temperature Range: -40°F to 200°F
- Working Pressure: 0 - 1000 psi
- Electrolytic Nickel Plated brass body with a low temperature BUNA-N O-ring
- For use with DOT approved Nylon® tubing
- Compressed air applications
Technical Specs
- Material Electrolytic Nickel-plated brass OT58 UNI 5705, Tube-support/insert in brass
- Collet Brass OT58 UNI 5705, nickel plated
- O-ring Low temperature Buna-N (NBR)
- Threads 1/8", 1/4", 3/8", 1/2" NPTF
- Operating pressure 0 - 1000 psi
- Fluid Compressed air
