1/2 HOSE UNION

https://universalair-uas.odoo.com/web/image/product.template/135/image_1920?unique=554c4ac
(0 review)

$ 7.85 7.8500000000000005 USD $ 7.85

$ 7.85

    This combination does not exist.

    Contact Us



    Barcode: 655255305327
    Shipping Weight: 0.1 lb
    Internal Reference: 05-BF12-7
    Brand: Cmatic
    Manufacture Part Number: PT26 1/2 1/2

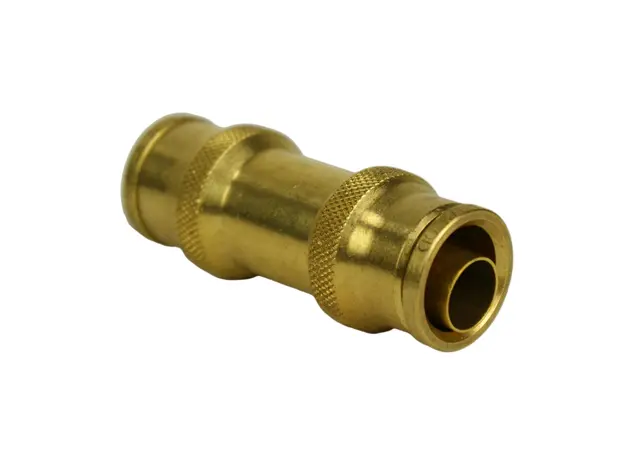

    1/2" Hose Union

    All of our fittings are D.O.T. Approved to prevent Air Leaks

    Specifications

    • Alkon AQ-DOT Series meet D.O.T. FMVSS 571.106 Air Brake Performance Requirements
    • SAE J1131, J2494-1 & J2494-3 Air Brake Performance Requirements.

    Materials of Construction

    • Body (straights), tube supports and grippers: Brass CA 360
    • Forged Elbows: Brass CA377
    • "O" Ring: NBR-269, alternate compounds on request.

    Temperature Range
    -40℉ to 212℉ (other ranges available upon request)

    Threads
    - NPTF Standard.

    Recommended Tubing
    - Polyethylene, Polyurethane 95A Durometer and Nylon AQ-DOT Series - J844 Air Brake Tubing

    Working Pressure
    - The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing.
