1/4HOSE 1/8 Fnpt STR

(0 review)
$ 6.01 $ 6.01

Add to cart
Contact Us

Barcode: 655255286114
Shipping Weight: 0.06 lb
Internal Reference: 05-BF14-2
Brand: Cmatic
Manufacture Part Number: PT13 1/4 1/8

1/4HOSE 1/8 Fnpt STR

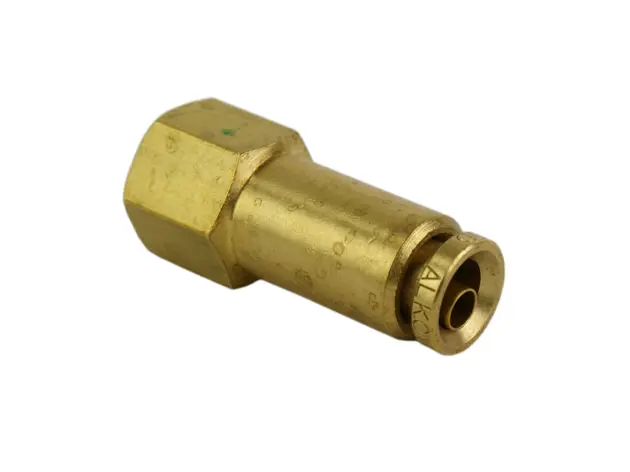

1/4" Hose 1/8" NPT Female Straight Push-to-Connect

All of our fittings are D.O.T. Approved to prevent Air Leaks

Specifications

  • Alkon AQ-DOT Series meet D.O.T. FMVSS 571.106 Air Brake Performance Requirements
  • SAE J1131, J2494-1 & J2494-3 Air Brake Performance Requirements.

Materials of Construction

  • Body (straights), tube supports and grippers: Brass CA 360
  • Forged Elbows: Brass CA377
  • "O" Ring: NBR-269, alternate compounds on request.

Temperature Range
-40℉ to 212℉ (other ranges available upon request)

Threads
- NPTF Standard.

Recommended Tubing
- Polyethylene, Polyurethane 95A Durometer and Nylon AQ-DOT Series - J844 Air Brake Tubing

Working Pressure
- The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing.
