Works with your 2.5" Front and 3" Rear Fox Shocks X3 Max RS Turbo RR W/ Smart Shocks
X3 Max X RS Turbo RR
X3 X RC Turbo RR 72
X3 X RS Turbo RR with Smart Shox X3
X RS Turbo RR
•Front Maximum Clearance* – 20.5” •Rear Maximum Clearance* – 22.5” •Front Minimum Clearance* – 4” •Rear Minimum Clearance* – 4.5” •Front Suspension Travel** – 16.5” •Rear Suspension Travel** – 18” •B Pillar roof to Ground* – 71” Maximum •B Pillar roof to Ground* – 54” Minimum * Factory Tire ** Factory travel numbers include "tire flex". We limit minimum clearance from the factory 1.4"/2.75" to 4"/4.5". Maximum extended is limited by the shocks so its the same as original.
•Air Spring Capacity up to additional 3,000 lbs. Cargo Capacity (Vehicle not rated for load)
•Approximately 120 lbs. for complete air system, Removal of factory coil springs reduces 57 lbs. for total additional weight of 63 lbs.
•100% Bolt-in installation. No fabrication required
•Compressor/tank/valve/ECU mounts under seats
•Height based auto leveling system with 3 programmable presets.
•Will maintain height to account for change in weight
•Onboard air that can be used for service air. Fill Tires, Air Tools, etc.

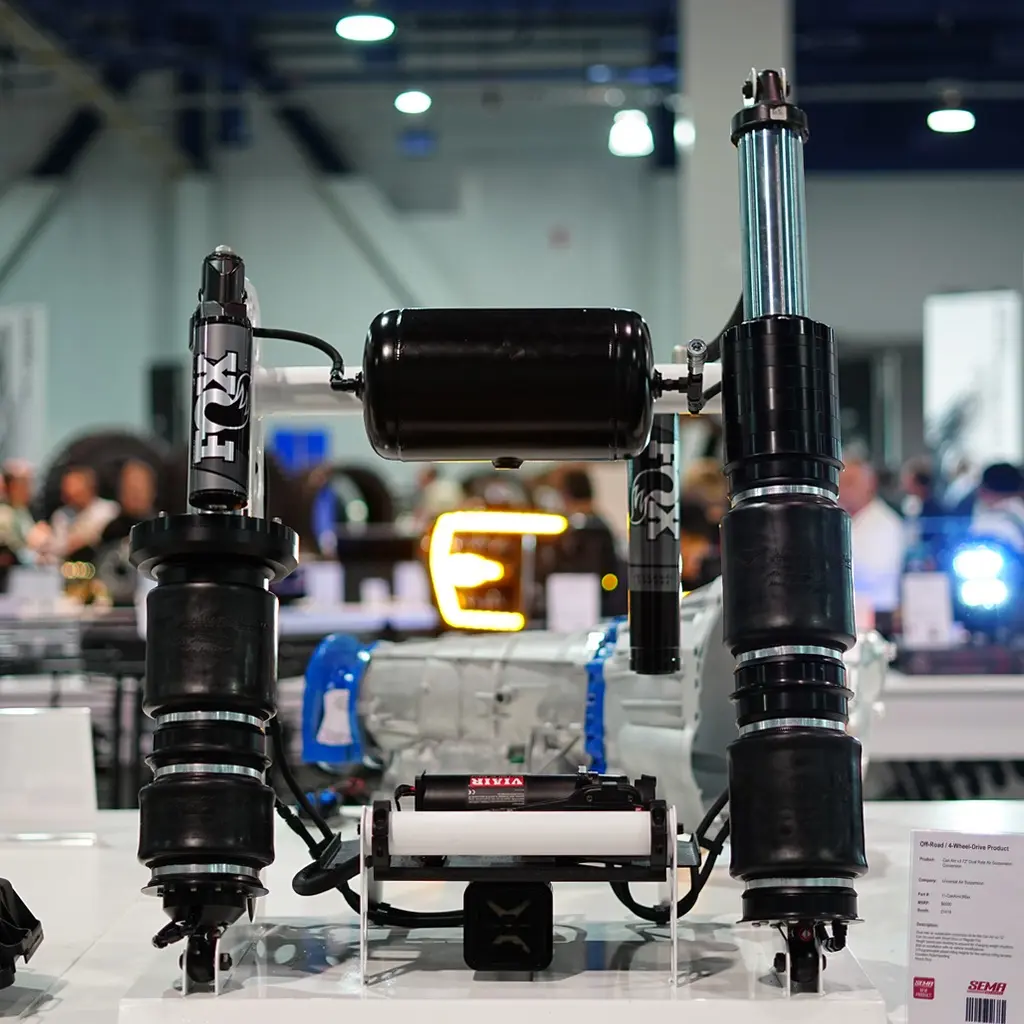

Take your Can Am Max to the Next Level 8 - Air springs to convert your Factory Fox Shocks from Coil Spring to Air Springs 1 - Viair 485 Compressor 1 - Aluminum Air Tank 1 - Accuair VU4 1 - Accuair E-Level 1 - Height Sensor and Management Bracket Kit for no drill, bolt-on, under seat installation 1 - AN Hose & Fitting Kit 1 - Solenoid
