Accuair ENDO T Tank 5 Gallon

BOLTED CONSTRUCTION

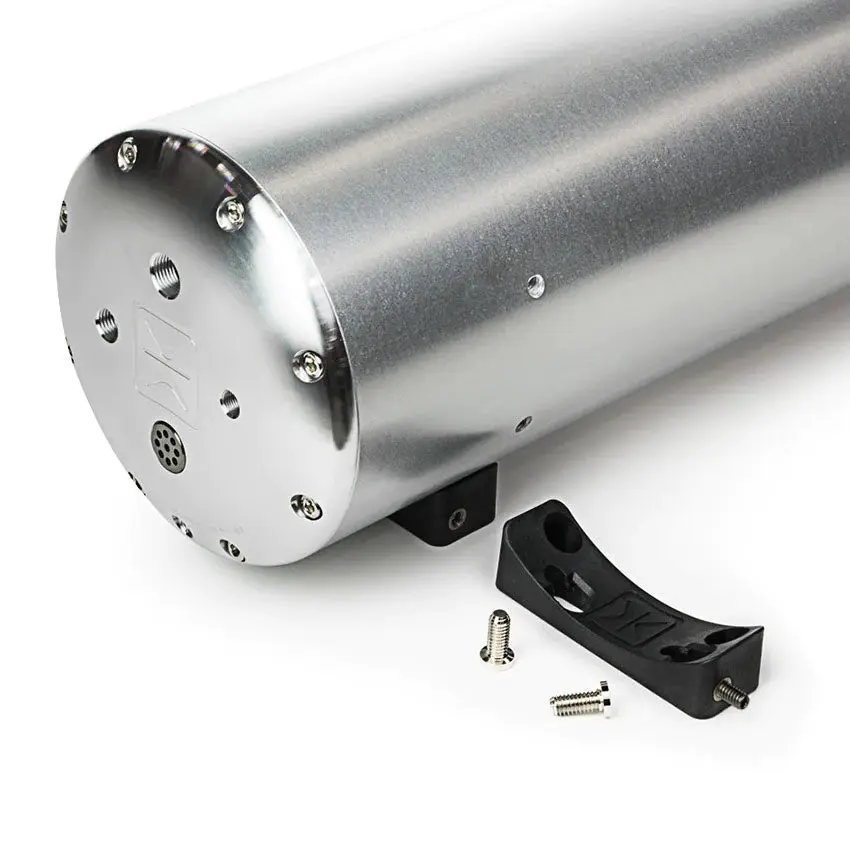

Modular and bolted construction makes disassembly possible for maintenance and upgrades.

ADJUSTABLE FLOW CONTROL

Built-in VFCTM adjusters allow for end user adjustment of the speed of each corner and each direction individually.

4-CORNER & 2-CORNER

Available in 4-corner and 2-corner configurations.

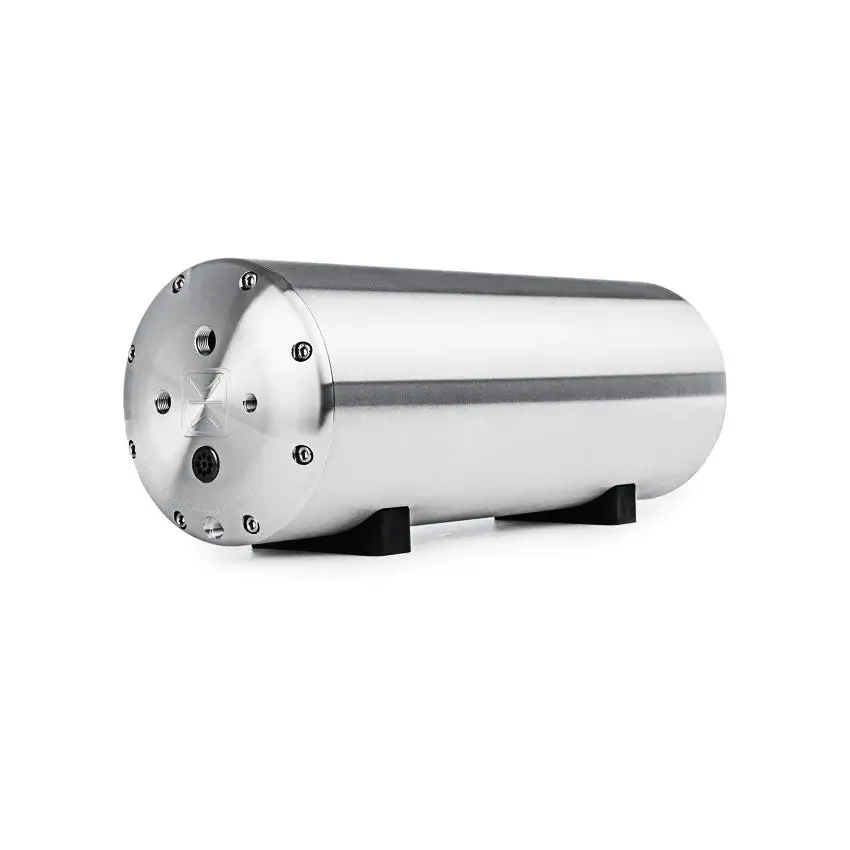

Every good air suspension kit should have a high-quality air tank to store the air produced by the air pumps. The AccuAir ENDO-T tank is the basic air tank design in the ENDO lineup and will not feature integrated valves or compressors. This is a great cost-effective option for those who do not mind having their valves mounted externally. The ENDO-T tank can always be upgraded later down the line to include integrated valves for cleaner installs. This tank features ultra-high-strength bolts, aerospace-grade aluminum, and a weldless design for a precision machined fit and leak free design.

About ENDO Tanks

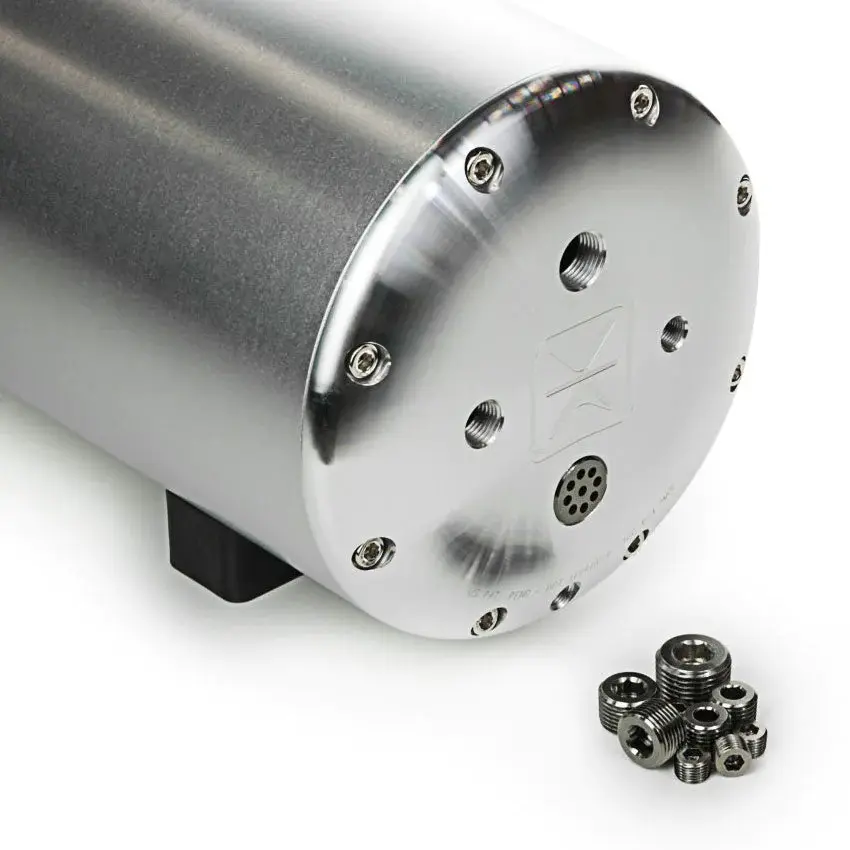

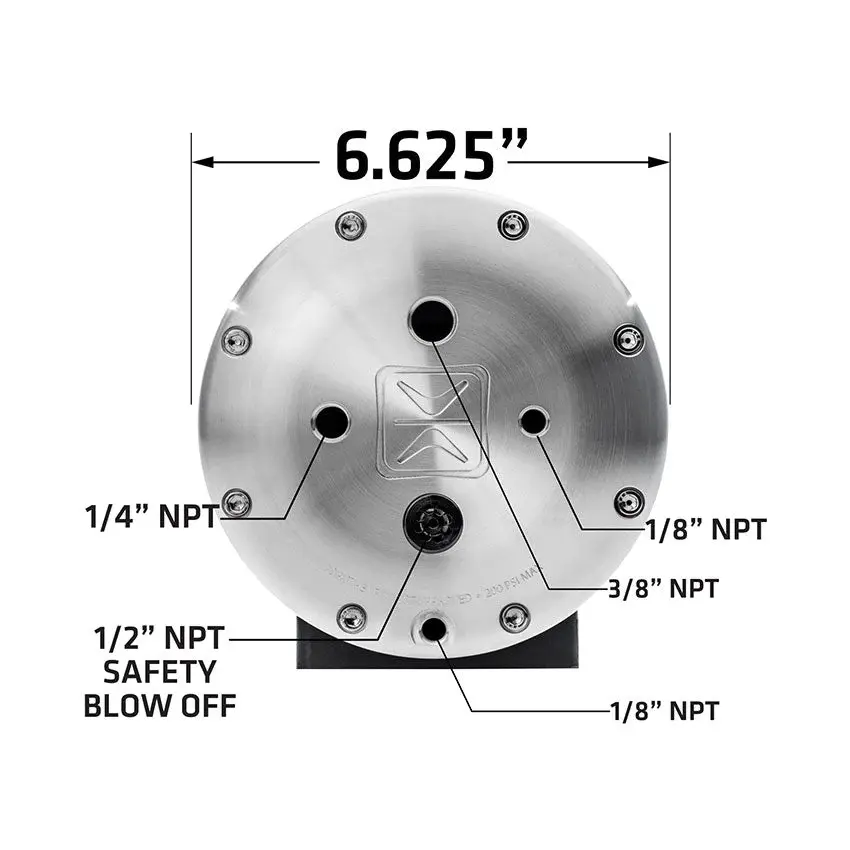

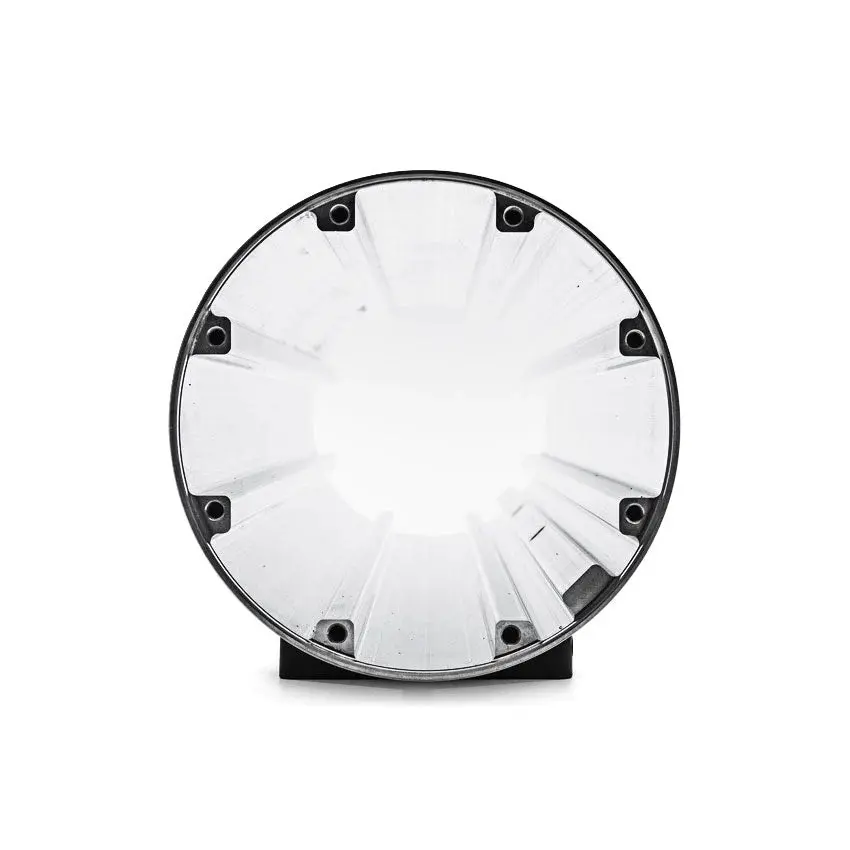

AccuAir's ENDO-Tank™ product line is the result of years of engineering accomplishments and represents the largest leap forward in air tank technology for 100 years. The system allows tanks to be built modularly with all precision machined aluminum components and with a bolted construction. As a result, these tanks are weld-free and leak-free. Ports are machined directly into the solid aluminum body and are flush with the outside of the tank. Modular construction allows the end-caps to be removed allowing for never before imagined feature combinations to go inside the tank. These tanks are offered in raw aluminum.

What Size Tank Do I Need For Air Suspension?

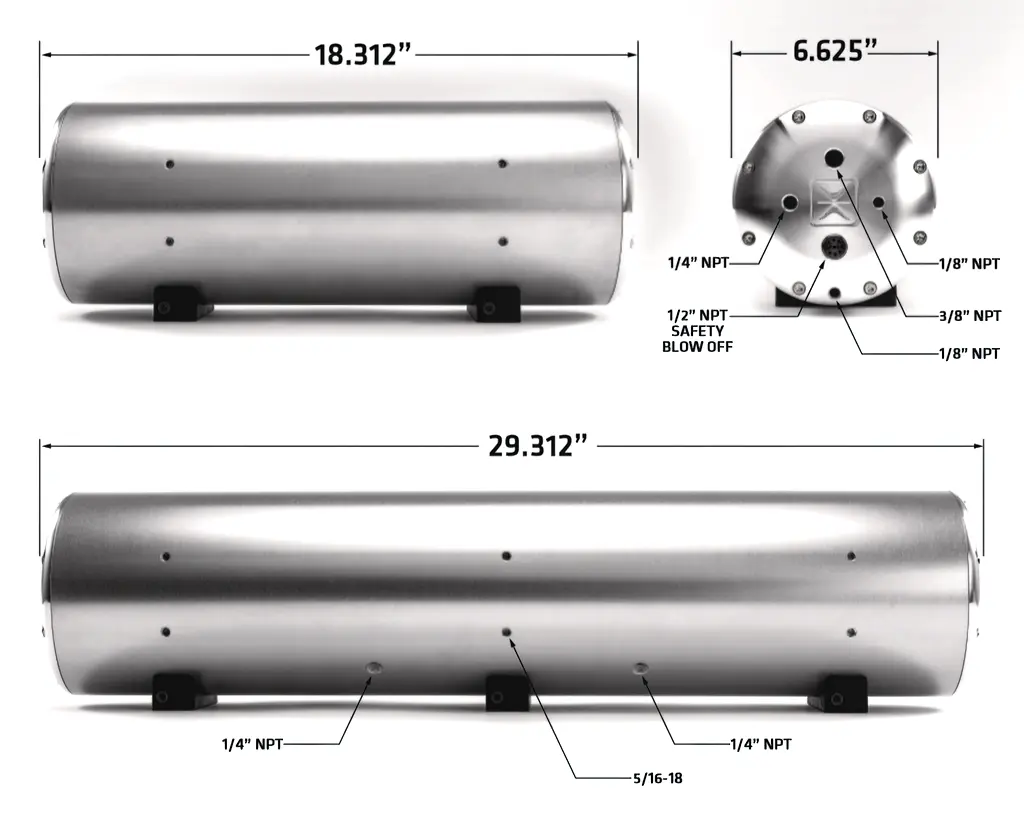

One of the most common questions surrounding air suspension air tanks is “what size tank do I need for my air suspension kit?”. Most air suspension systems are going to utilize a 3 gallon or 5-gallon air tank. The size you will need will depend on how often you plan on using your air suspension and the type/quantity of air compressor you are using. If you plan on airing out every chance you get, you may want to get a 5-gallon tank to store more air for quicker operation. Our ENDO tanks are offered in 3 gallon and 5-gallon options.

Installation Guide

Mounting Template With Bend Line (3 Gallon Tank)

Mounting Template Without Bend Line (3 Gallon Tank)

Mounting Template With Bend Line (5 Gallon Tank)

Mounting Template Without Bend Line (5 Gallon Tank)

Plug Diagram
