Build your Accuair Management System
Choose your Options for your Air Suspension Management
Trying to Simplify the complexity of building out your management system to fit your needs.
It can get overwhelming when trying to decide which options you need. We are here to help!

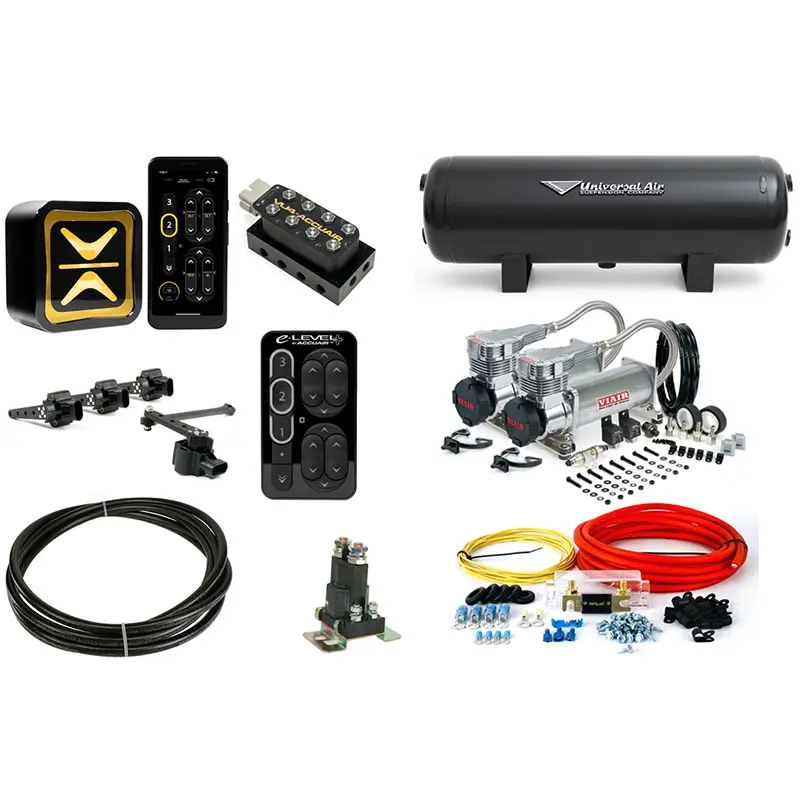

The Complete Management Kit will come with all the fittings, hardware, wiring, airline and even items you didn't even know you needed!
If your looking for the Accuair Valve Tank (VT)
If your looking for an All Together Tank System

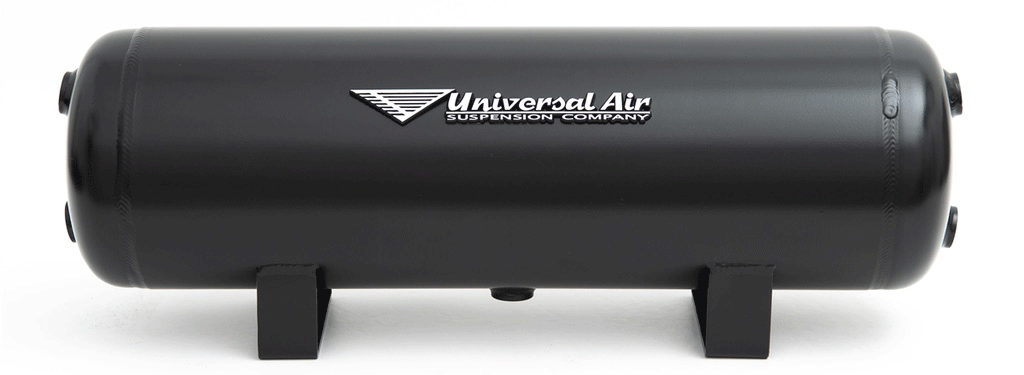

Air Tank
Bigger isn't always better. Your tank is a prime example. The larger your tank is, the more non stop play time you will have. However, when the compressors turn on, the longer it will take to fill back up.
We generally recommend 4 gallons of air for most vehicles. Of course we will be including all the fittings needed based off your selections above.
First step is to measure out your spacing to see what will fit best. Have your Own Custom Tank you would like to use? Select "No Tank" and don't forget to add your required fittings. Your always welcome to Contact Us for help
3 Gallon - 7" Diameter x 20" Long Back Ports
4 Gallon - 7" Diameter x 24" Long End Ports
4.5 Gallon - 7" Diameter x 28" Long Back Ports
5 Gallon - 7" Diameter x 32" Long Back Ports
No Tank option removes the tank and associated fittings to connect as tanks come in various different port configurations.

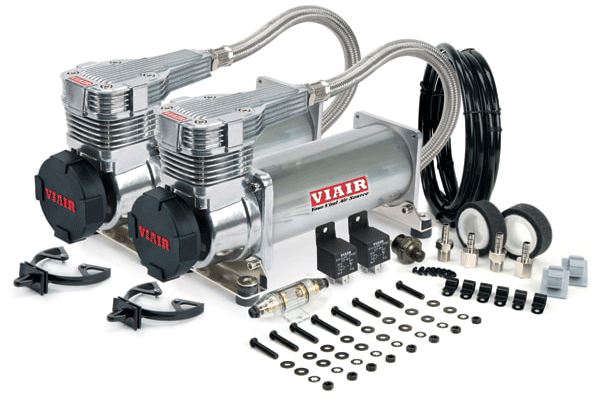

Choose your Compressors
We always recommend dual compressors for drivers. Dual compressors will last a lot longer since they are only running half the time. When they wear out you will notice its taking forever to fill Selecting the options will include the required fittings to install.
If your feeling overwhelmed with the compressor choices, here is our recommendations. To save a few bucks, 444's are the way to go. If you want the best, 485's are for you. If you would like the quietest, 410's are the way to go
Compressor Differences
If you're going to run a single compressor, this is one to run. 200 PSI.
When space is tight, this is the way to go. With the smaller motor, it will fit into tighter spaces. 200 PSI.
Fastest filling, but lower duty cycle and only 150 PSI rated.
By far the most popular choice. Excellent cost to performance ratio. 200 PSI.
Old faithful compressor. Larger head then the 444 for better cooling. We feel if you want a better compressor then the 444, step up to the 410 or 485. 200 PSI.
Newer version of the 480 compressor. Heavier duty motor with highest duty cycle, and faster filling compared to the 444/480. 200 PSI.
Quieter operating version of a 380. Shorter length then the 410ss. 200 PSI.
Quieter operating version of a 444/480/485. Faster then the 444/480 but 485 is slightly faster. 200 PSI.

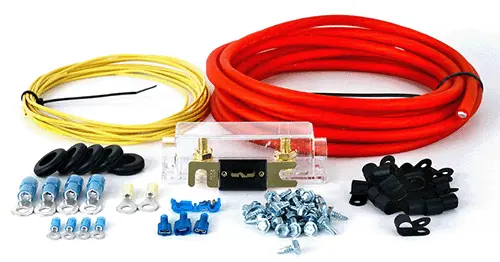

Power Kit
The Power Kit is recommend for anyone without a ton of extra heavy power wire laying around from that stereo install.
The Power Kit includes all the accessories required to hook up the compressors. 4 AWG Heavy Gauge Power Wire, Ring Terminals, Wire Clamps, ANL Fuse, ANL Fuse Holder, 80 AMP Solenoid Etc.
Auto Leveling
This is where you can unlock the true advantage of the Accuair E+ System. Running Height based Auto Leveling or Pressure based.
We recommend Accuair height based system as its super robust and accurate.
The system will be functional without the sensors installed, you just won't have your presets until they are.
Height based is always best, however, for a convoluted air spring style system, pressure based is accurate enough for most people. For a Sleeve/Rolling Lobe style bag, you really need height based since the pressure inside the bag doesn't change much as you change the height. Downside of course is a height based system is more expensive and harder to install.
The Accuair Height based system is the most forgiving on the Sensor sweep range.
We feel the Accuair Height Based system works much better.
Height Based
- Requires mounting of height sensors.
- More accurate and consistent then pressure based systems.
- Works with any Air Bag.
- HIGHLY recommended for Sleeve/Rolling Lobe Bags to achieve consistent height.
- Accounts for change in Load (weight) in the vehicle.
- Presets are based on physical height.
Pressure Based
- Easy to Install.
- Will maintain the preset pressure in the bag.
- Works fine with Convoluted bags but not accurate on Sleeve/Rolling Lobe Bags.
- Use multiple preset pressures for weight change scenarios.
- Upgradeable to Height based if needed.
Specifications
Tank | 3 Gallon Aluminum or 4 Gallon Black Aluminum or 4 Gallon Silver Aluminum or 4.5 Gallon Aluminum or 5 Gallon Aluminum or No Tank |
Compressor | Single Viair 380 or Dual Viair 380 Chrome or Dual Viair 400 Chrome or Dual Viair 444 Chrome or Dual Viair 444 Black or Dual Viair 480 Chrome or Dual Viair 485 Platinum or Dual Viair 485 Black or Dual Viair 310 Stealth or Dual Viair 410 Stealth |
Power Kit | No Power Kit or Yes Power Kit |
Autoleveling | No or Pressure Based or Height Based |
