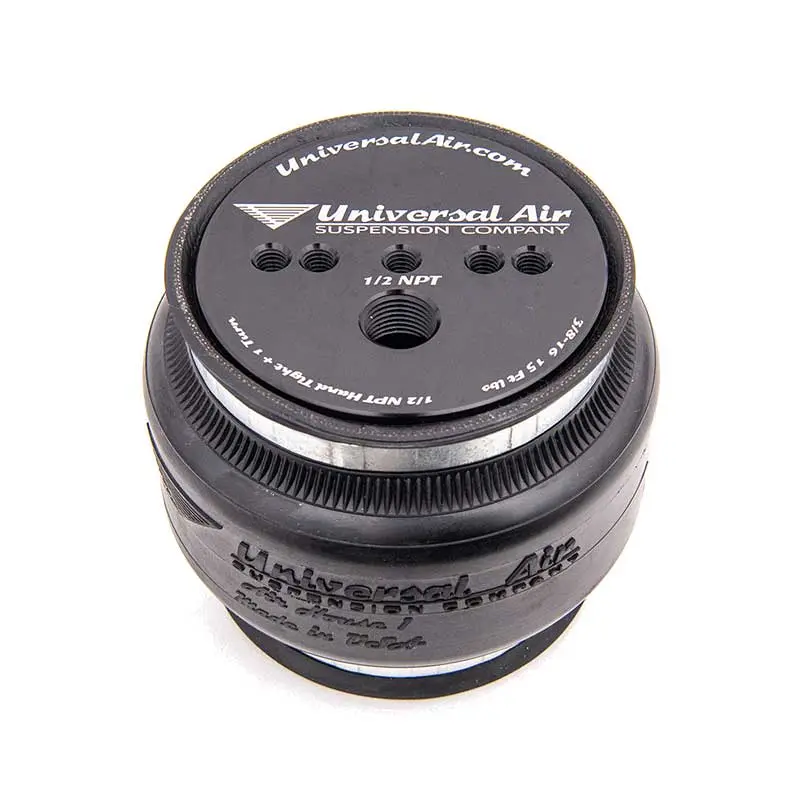

Air House 1
By Universal Air
Great things come in compact packages!
Sometimes too much travel is not a good thing. That is where the Air House 1 shines. It was developed to fit into the applications where the Air House 2 give too much travel. Have a control arm that will hit your bag? Shock too close for comfort? Or maybe you want a firmer ride at a lower height. Air House 1 is your answer!
No Center Ring
Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.
Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated. Minimizing frame cutting in most applications.
With the added stability there is a very noticeable reduction in vehicle "sway" compared to a typical double convoluted.
Specifications
2" Collapsed Height
7" Extended Height
5.875" Max Diameter
Available in 1/4", 3/8" and 1/2" NPT
3.25" - 4.5" Optimum Ride Height
Up to 2500 Lbs. Force at 120 PSI
Heavy Duty Thick Rubber Construction
580 PSI Tested Burst Pressure
Front or Rear Installation
Straight or Angled Installation
Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps
Seeing is Believing!
E2
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Port Size | 1/4 or 3/8 or 1/2 |
