Air House 1 Air Bag

https://www.universalair.com/web/image/product.template/96/image_1920?unique=a23286d
(0 review)

89.00 89.0 USD 89.00

89.00

  • Port Size

This combination does not exist.


Shipping Weight: 5 lb
Brand: Universal Air
Manufacture Part Number: 02-2500

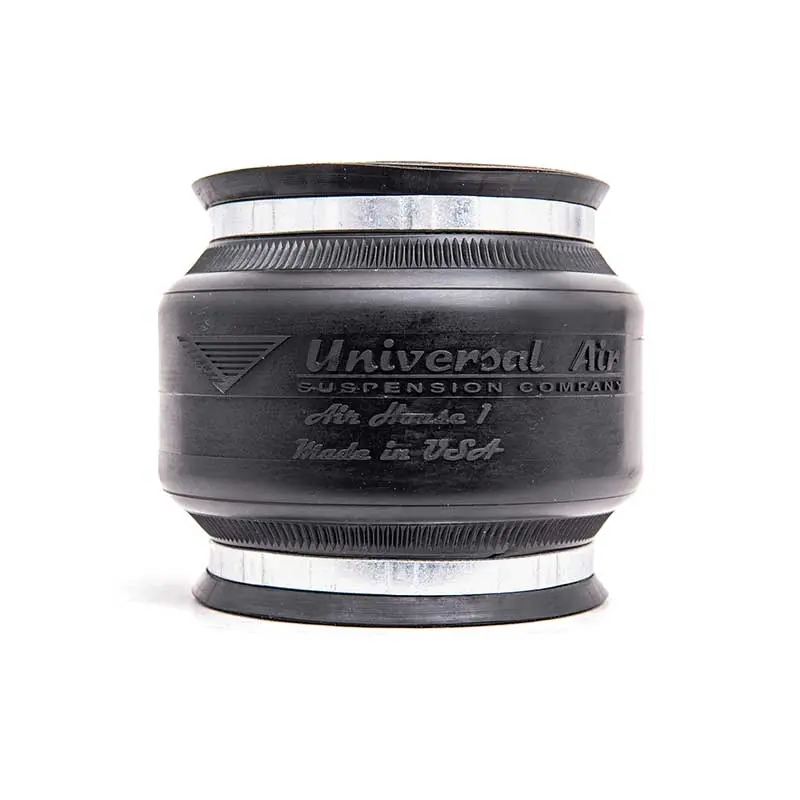

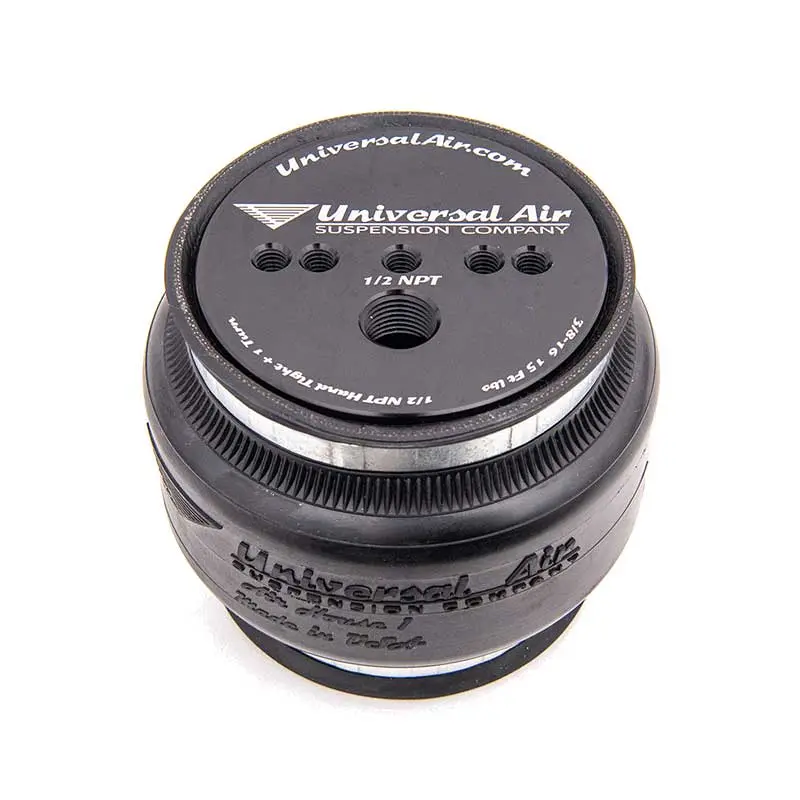

Air House 1

By Universal Air

Great things come in compact packages!

Sometimes too much travel is not a good thing.  That is where the Air House 1 shines.  It was developed to fit into the applications where the Air House 2 give too much travel.  Have a control arm that will hit your bag?  Shock too close for comfort?  Or maybe you want a firmer ride at a lower height.  Air House 1 is your answer!

No Center Ring

Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.

Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated.  Minimizing frame cutting in most applications.

With the added stability there is a very noticeable reduction in vehicle "sway" compared to a typical double convoluted.

Specifications

2" Collapsed Height

7" Extended Height

5.875" Max Diameter

Available in 1/4", 3/8" and 1/2" NPT

3.25" - 4.5" Optimum Ride Height

Up to 2500 Lbs. Force at 120 PSI

Heavy Duty Thick Rubber Construction

580 PSI Tested Burst Pressure

Front or Rear Installation

Straight or Angled Installation

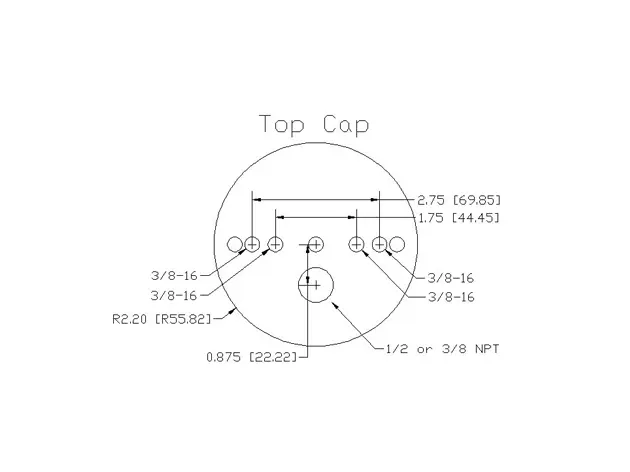

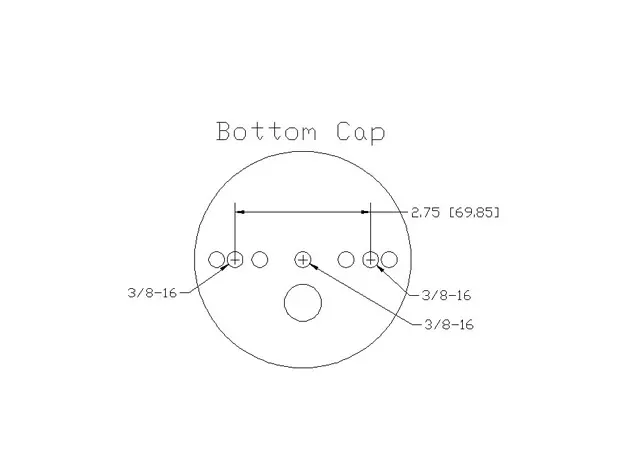

Industry Standard Bolt Pattern

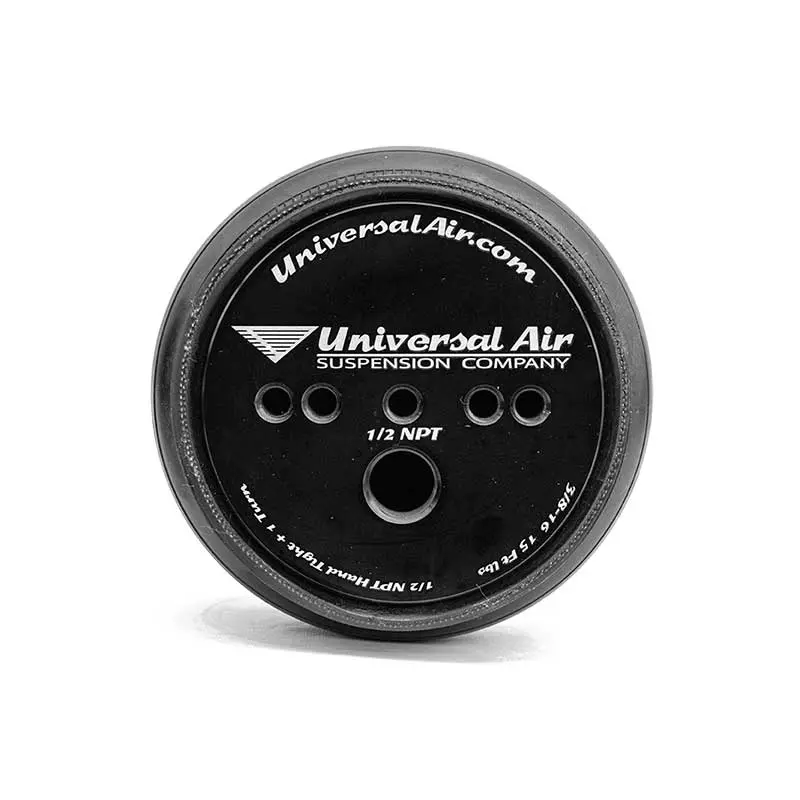

Machined 6061 Aluminum Caps

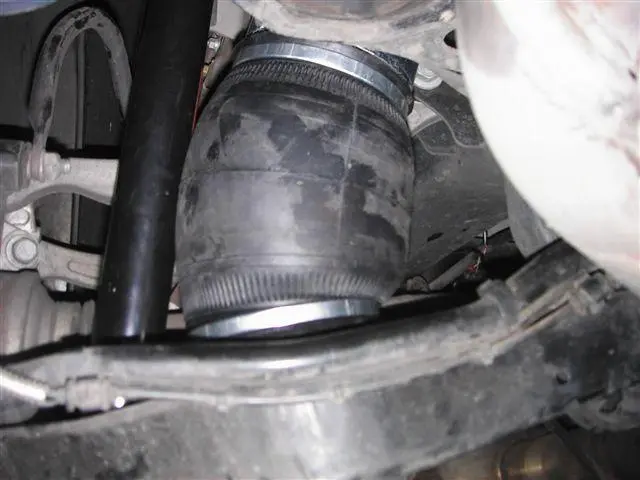

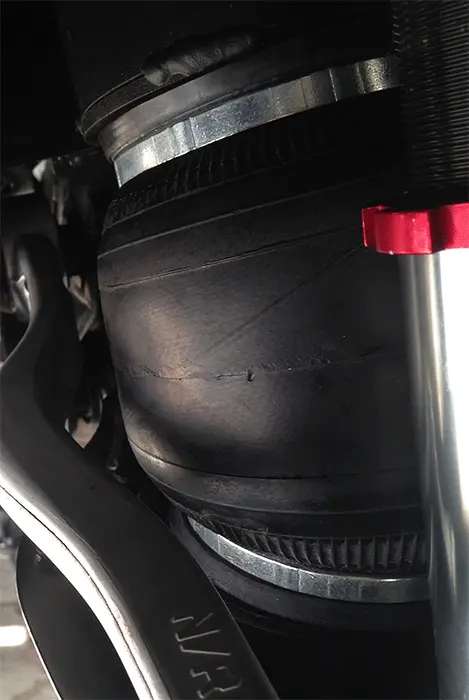

Seeing is Believing!




E2

Specifications

Port Size 3/8 or 1/2 or 1/4 Special Order
