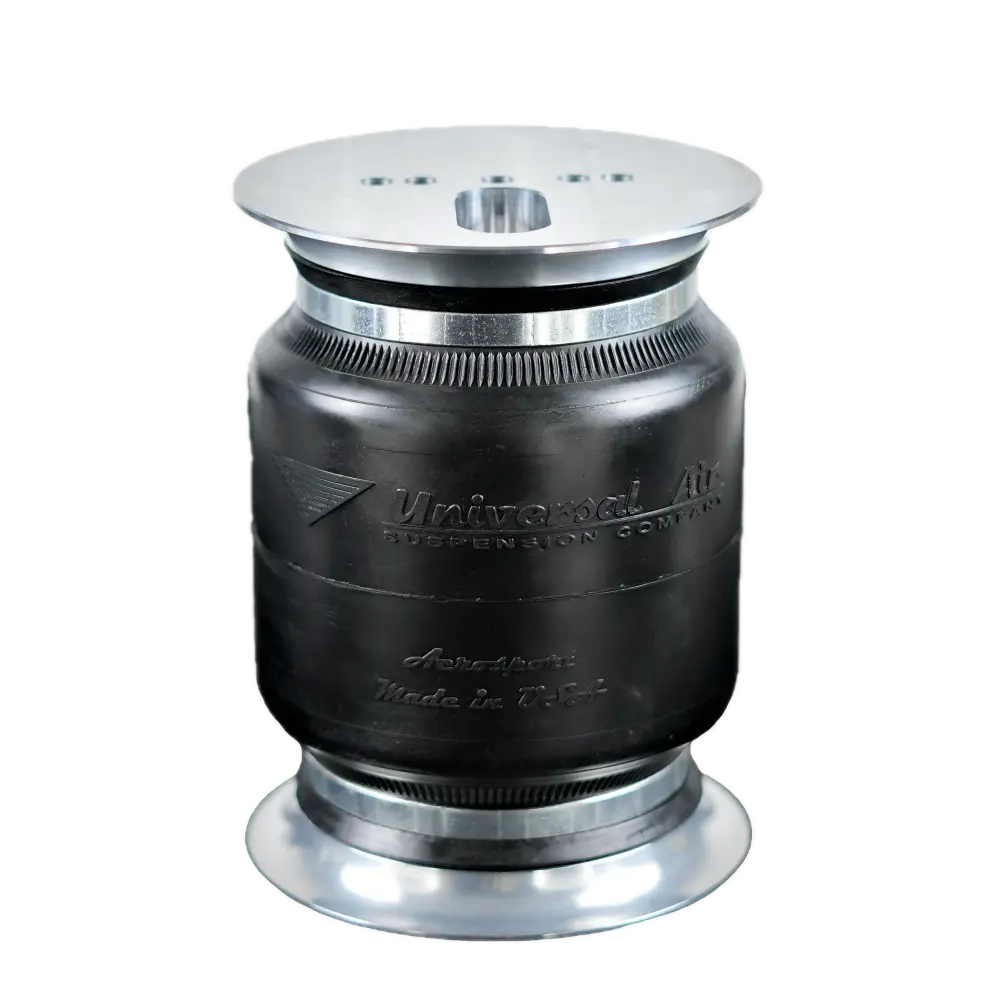

Air House 6 L Gen 3
By Universal Air
Maximize your Travel with the new Air House 6 L Gen 3
We have listened to all of your wonderful feedback and improved our 6L Bags. We slimed out the bead plates to hit the super short collapsed height, and attached the bead plates to the caps to make it easier to install.
The Air House 6L was designed to maximize the available Travel for your typical 6" Diameter bag that collapses to the standard 3 1/8". We took our tried and true Air House 2, stretched it out for more travel. Its a direct replacement for your standard double convoluted air bag.
With a 2.7" Collapsed, and massive 10.75" extended height, resulting in 8" of available bag travel and even more at the Wheels with leveraged suspension!
More travel then most bags in the same diameter class. Best suited for your Control Arm Front suspension, or Link rear system where the bags are mounted on the bar to take advantage of leverage.
No Center Ring
Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.
Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated. Minimizing frame cutting in most applications.
With the added stability there is a very noticeable reduction in vehicle "sway" compared to a typical double convoluted.
Specifications
2.7" Collapsed Height
10.75" Extended Height
5.875" Max Diameter
3/8" NPT Standard and 1/4" & 1/2" NPT soon
4.00" - 6.75" Optimum Ride Height
Up to 2600 Lbs. Force at 115 PSI
Heavy Duty Thick Rubber Construction
615 PSI Tested Burst Pressure
Front or Rear Installation
Straight or Angled Installation
Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps
Seeing is Believing!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Port Size | 3/8 |
