AVS 8 Channel Wireless Remote

AVS 8-CHANNEL REMOTE SYSTEM

Features:

• Rugged metal remotes w/blue led light
• True 8 channel, 8 output system
• Direct outputs. No more having to hold a button for 3 seconds, pressing buttons twice or multiple buttons at one time. Press a button for one second and the output activates. It's that simple.
• Pulsed output and continuous (button held down)
• Protective cover slides over the buttons preventing accidental activation of outputs while in your pocket.
• Parking lights flash when any output is activated (use for visual confirmation and as a diagnostic tool)
• Simple one button remote programming
• 12 month limited warranty against defects

technical:

• 12v-14v dc input voltage
• Up to 1000' transmitting range
• Eight 500ma (-) negative outputs
• On board parking light relay with dual outputs
• Approximate 8ms pulse duration

use to control:

• Shaved doors*
• Air ride suspension*
• Power windows*
• Power door locks*
• Power bed covers*
• Power tailgates*
• Remote engine start*
• Power trunk release*
• Train horn*

(*to control this feature additional parts may need to be purchased such as relays, control modules, etc.

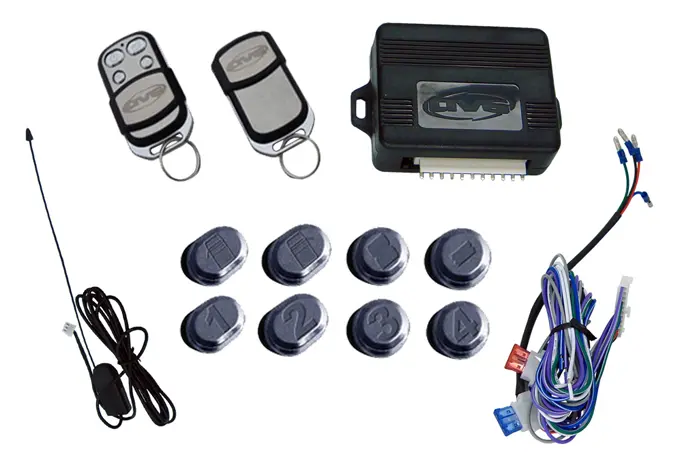

This package includes:

• (2) 4 button transmitters
• (1) receiver
• (1) harness
• (1) antenna
