Brass Valves FBSS Air Management Package

https://universalair-uas.odoo.com/web/image/product.template/1387/image_1920?unique=06f578e
(0 review)

1,445.19 1445.19 USD 1,445.19

1,450.19

  • Tank
  • Compressor
  • Airline Size
  • Switchbox
  • Air Gauges

This combination does not exist.


Shipping Weight: 65 lb

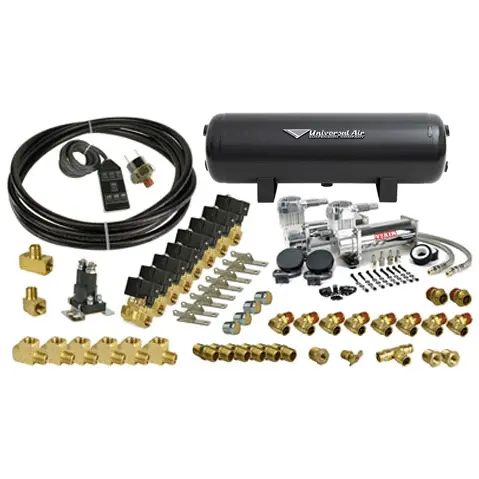

Build your FAST Brass Air Management

Choose your Options for your Air Suspension Management


This System is designed for your FAST air system. Each corner is individually valved for reduced body roll and speed.

 Nitrogen or Helium bottle for your hopper, No Problem.

These Italian Made Brass Valves you will provide ALOT more air flow compared to your manifold style valve.

No matter if your out for outright RAW Speed, or the sheer reliability of this is the management system for you.

We have been using these valves for over 20 years.  We have even had customers scooping out rust contamination and putting the valves back into service.

There is quite a bit more components to assemble and install compared to your standard manifold style valve.

Air Tank

Bigger isn't always better.  Your tank is a prime example.  The larger your tank is, the more non stop play time you will have.  However, when the compressors turn on, the longer it will take to fill back up.

We generally recommend 4 gallons of air for most vehicles.  Of course we will be including all the fittings needed based off your selections above.

First step is to measure out your spacing to see what will fit best.  Have your Own Custom Tank you would like to use?  Select "No Tank" and don't forget to add your required fittings.  Your always welcome to Contact Us for help

 3 Gallon - 7" Diameter x 20" Long Back Ports
4 Gallon - 7" Diameter x 24" Long End Ports
4.5 Gallon - 7" Diameter x 28" Long Back Ports
   5 Gallon - 7" Diameter x 32" Long Back Ports

No Tank option removes the tank and associated fittings to connect as tanks come in various different port configurations.

Choose your Compressors

We always recommend dual compressors for drivers.  Dual compressors will last a lot longer since they are only running half the time.  When they wear out you will notice its taking forever to fill Selecting the options will include the required fittings to install.

If your feeling overwhelmed with the compressor choices, here is our recommendations.  To save a few bucks, 444's are the way to go.  If you want the best, 485's are for you.  If you would like the quietest410's are the way to go

If you're going to run a single compressor, this is one to run. 200 PSI.

When space is tight, this is the way to go.  With the smaller motor, it will fit into tighter spaces. 200 PSI.

Fastest filling, but lower duty cycle and only 150 PSI rated.

By far the most popular choice.  Excellent cost to performance ratio. 200 PSI.

Old faithful compressor.  Larger head then the 444 for better cooling.  We feel if you want a better compressor then the 444, step up to the 410 or 485.  200 PSI.

Viair Dual 485

Newer version of the 480 compressor.  Heavier duty motor with highest duty cycle, and faster filling compared to the 444/480. 200 PSI.

Airline Size

The size of the airline will determine how fast the vehicle will lift and drop.  1/2" is Extremely fast, to the point where it can be hard to control

 We do include muffler/slowdowns to help restrain the drop speed.  If your not looking to hop or be bounced around 3/8" is allot more controllable.

Keep in mind, that 3/8" Airline on Brass Valves isn't the same as on a manifold valve

The internal passageways on the manifold are the limiting factor, not the airline.

Typical Raise Time from all the way down
1/2"
- Less then second
3/8"
- 1-3 Seconds

Switch Box

This is the part you will touch and use Everyday to move your vehicle.

Our most popular boxes are the AVS 7 Switch and the Slam Specialties 8 Switch.

The AVS 7 Switch has a heavier in-hand feel compared to the Slam Specialties 8 Switch.

The Slam Specialties 8 Switch is super compact, about the size of a stack of business cards.

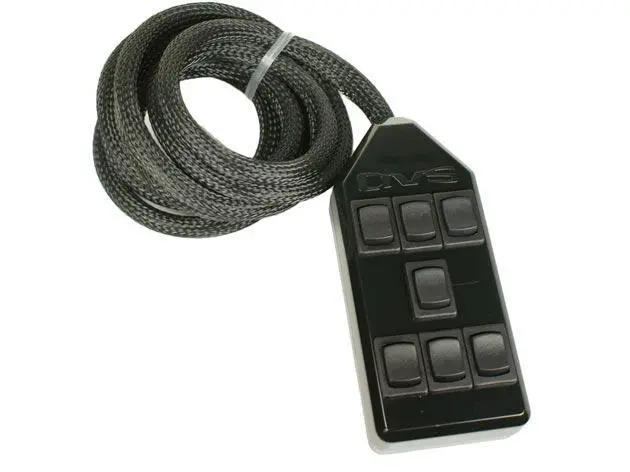

AVS 7 Switch

Fairly compact, easy to one hand operate the functions.

It has an Individual Corners, Front, Back and Pancake (all) Up and Down Switches.

The box is directly wired to the switches.

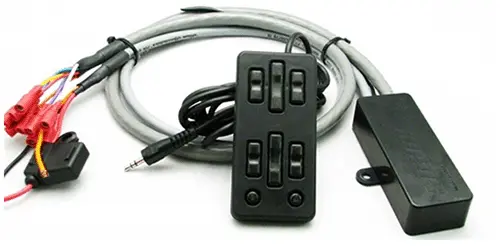

Slam Specialties 8 Switch

Don't let the name fool you.  It has the same  Individual Corners, Front, Back and Pancake (all) Up and Down Switches.

Difference is the "Pancake" Switch is individual buttons instead of a rocker switch.

The box does utilize a microprocessor with Solid State outputs for a long life and provide the ability to run the compact switches.

Air Gauges

If you would like to monitor the pressure in your bags this kit will include everything needed to hook them up.

This kit includes the Gauges, Panel, Airline, and Fittings.

You can use the Pressure to judge your height on most convoluted air springs.

Specifications

Tank 3 Gallon Aluminum or 4 Gallon Black Aluminum or 4 Gallon Silver Aluminum or 4.5 Gallon Aluminum or 5 Gallon Aluminum or No Tank
Compressor Single Viair 380 or Dual Viair 380 Chrome or Dual Viair 380 Black or Dual Viair 400 Chrome or Dual Viair 400 Black or Dual Viair 444 Chrome or Dual Viair 444 Black or Dual Viair 480 Chrome or Dual Viair 480 Black or Dual Viair 485 Platinum or Dual Viair 485 Black
Airline Size 3/8" or 1/2"
Switchbox AVS 7 Switch or Slam Specialties 8 Switch or AVS 9 Switch or No Switches
Air Gauges No or Analog
