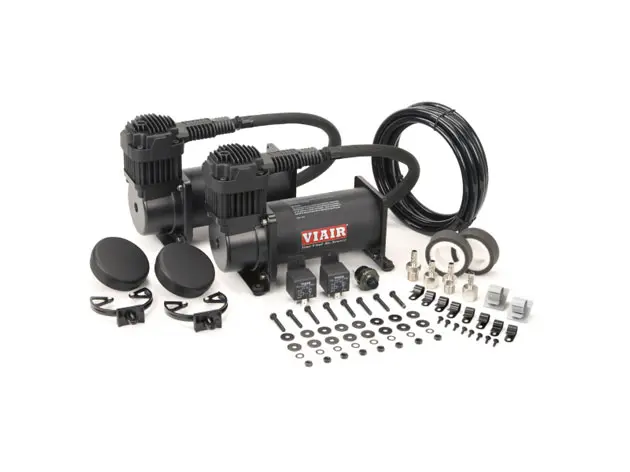

380C Dual Stealth Black Value Pack

(0 review)

200 PSI, 380C/2, 165/200 P. Switch, 40 Amp Relay/2

$ 448.75 $ 448.75

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 818114003868
Shipping Weight: 19.75 lb
Internal Reference: VA-38036
Brand: Viair
Manufacture Part Number: 38036

BUILT-IN RELIABILITY
1/4” NPT stainless steel braided leader hose
with an inline check valve.

MINI WORKHORSE
Capable of providing a maximum of 200 PSI
& a 100% duty cycle.

COMPACT
Perfect option for simple or compact air suspension setups.

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features two 12-volt Stealth Black 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch. Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Additional Info Download:
Manual

Dimensional Drawing

Wiring Diagram

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

Features & Specifications

Features
Specifications
– (2) 380C (Chrome, Pewter, or Stealth Black) Air Compressors
w/Thermal Overload Protectors		– 12-Volt
– (2) Air Filter Assemblies– Permanent Magnetic Motor
– (2) Remote Mount Brackets– Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
– (2) Sets of Remote Mount Fittings– Max. Working Pressure: 200 PSI
– (2) Sets of Spare Air Filter Elements– Max. Air Tank Size: 10.0 Gallon
– (2) Leader Hose Clips– Combined Max. Amp Draw: 44 Amps
– (6) Air Line Clips with Included Hardware– Ingress Protection Rating: IP67
– (8) Sets of Nuts, Bolts, Washers and Lock Washers– Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
– (2) 40-Amp Relays– Net Weight: 17.50 lbs.
– (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)–
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve–
– Air Line (For Remote Mount Filter Installation)–

Performance Data

PSICFMABARLPMA
0
2.5428
0
72.028
102.4229
1.067.030
202.3031
2.061.733
302.1733
3.057.534
402.0734
4.053.536
501.9535
5.049.837
601.8736
6.046.439
701.7837
7.043.341
801.7038
8.040.343
901.6139
9.037.244
1001.5441
10.034.542
1101.4642
11.031.841
1201.4043
12.029.240
1301.3244
13.026.638
1401.2543
14.023.737
1501.1942



1601.1241



1701.0640



1800.9939



1900.9338



200
0.8637



* Supply Voltage: 13.8 Volts

Fill Rates

2.5 Gallon TankFill Rate
0 to 200 PSI3 min. 13 sec. (± 10 sec.)
165 to 200 PSI53 sec. (± 05 sec.)
5.0 Gallon TankFill Rate
0 to 200 PSI7 min. 11 sec. (± 15 sec.)
165 to 200 PSI2 min. 06 sec. (± 10 sec.)
– (2) 380C Stealth Black Air Compressors
w/Thermal Overload Protectors
– (2) Air Filter Assemblies
– (2) Remote Mount Brackets
– (2) Sets of Remote Mount Fittings
– (2) Sets of Spare Air Filter Elements
– (2) Leader Hose Clips
– (6) Air Line Clips with Included Hardware
– (8) Sets of Nuts, Bolts, Washers and Lock Washers
– (2) 40-Amp Relays
– (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
– Air Line (For Remote Mount Filter Installation)
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 10.0 Gallon
– Combined Max. Amp Draw: 46-Amps
– Ingress Protection Rating: IP67
– Max Ambient Temp: +158°F
– Min Ambient Temp: -40°F
– Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
– Net Weight: 17.50 lbs.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

PSICFMABARLPMA
02.5428072.028
102.42291.067.030
202.30312.061.733
302.17333.057.534
402.07344.053.536
501.95355.049.837
601.87366.046.439
701.78377.043.341
801.70388.040.343
901.61399.037.244
1001.544110.034.542
1101.464211.031.841
1201.404312.029.240
1301.324413.026.638
1401.254314.023.737
1501.1942
1601.1241
1701.0640
1800.9939
1900.9338
2000.8637

* Supply Voltage: 13.8 Volts

2.5 GALLON TANKFILL RATE
0 to 200 PSI3 min. 13 sec. (± 10 sec.)
165 to 200 PSI53 sec. (± 05 sec.)
5.0 GALLON TANKFILL RATE
0 to 200 PSI7 min. 11 sec. (± 15 sec.)
165 to 200 PSI2 min. 06 sec. (± 10 sec.)

* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
