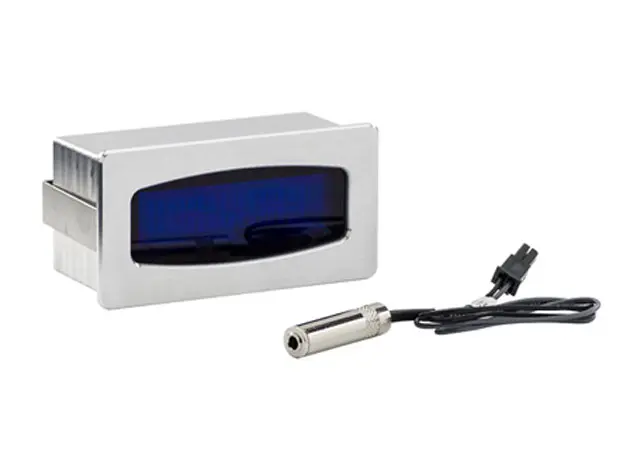

Dakota Digital Rectangle Digital Gauge W/5 Senders

Dakota Digital Rectangle Digital Gauge W/5 Senders

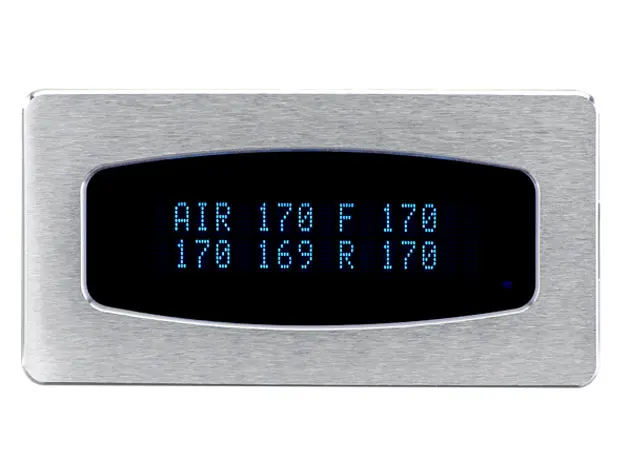

The ODY-19-6 Quad Air Pressure gauge can monitor and simultaneously display the front and rear pressure on front/ rear or four wheel independent air ride systems to display each air bag for proper pressure. The ODY-19-6 also displays the air tank pressure with other readings.

Dakota Digital instruments offer a high brightness, vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Dakota Digital instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!

• User adjustable high and low warning points can trigger a external light or buzzer. (not included)

• Night dimming.

Range:

0- 300 psi.  A single sensor will be required for each pressure reading. For example, a full independent (front/back/side to side) air system would require 4 sensors (1 for each airbag). A fifth sensor can be added to monitor the air tank pressure if desired.

Resolution:
1 psi

• Choice of either Blue or Teal display.

• Choice of either Satin or Chrome bezel.

• Machined aluminum bezel and housing.

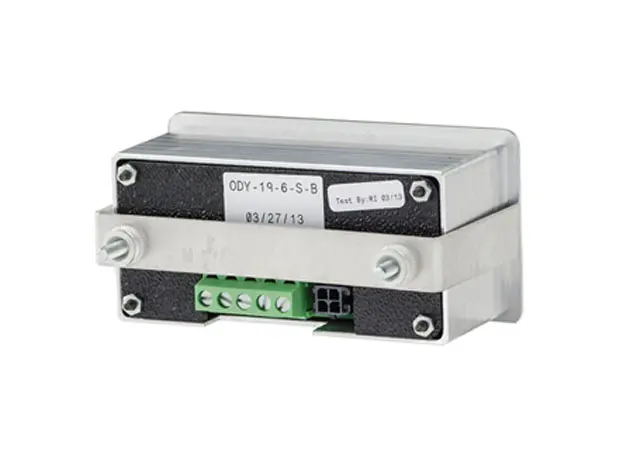

** Required BIM-19-2 Included
