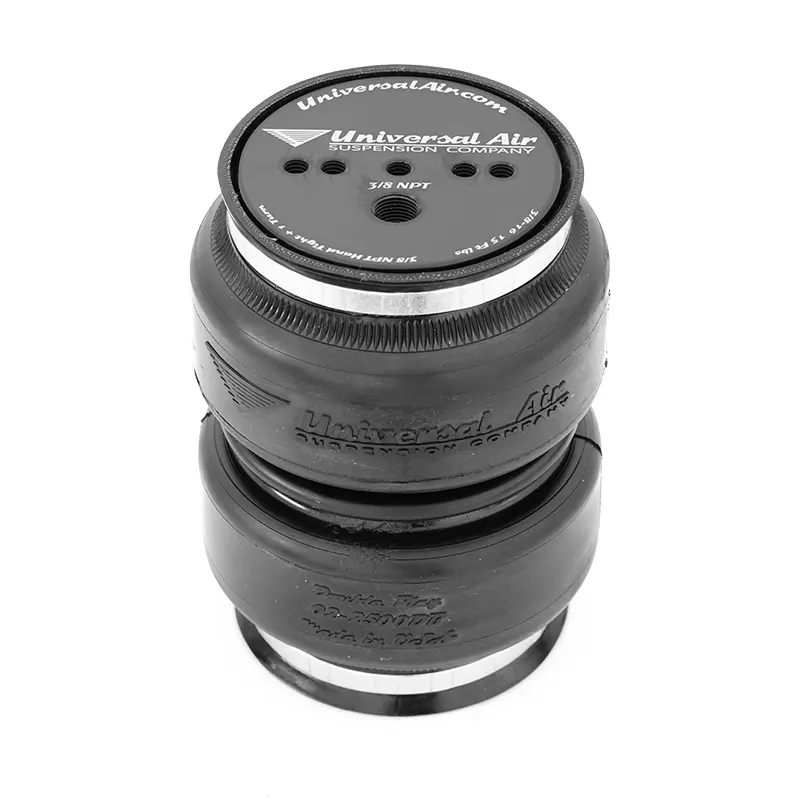

Double Play Air Bag

https://www.universalair.com/web/image/product.template/97/image_1920?unique=1e59c24

99.00 99.0 USD 99.00

99.00

  • Port Size

This combination does not exist.


Shipping Weight: 5 lb
Brand: Universal Air
Manufacture Part Number: 02-2500DB

Double Play

By Universal Air

A punchy Headline

Double Convoluted for Rear Suspension.

The Double Play is the perfect choice for your rear suspension that doesn't angle too much.  Engineered for an excellent ride quality and higher travel in the same diameter size.

Recommended Mounting is directly to the axel in a rear suspension application, or just Infront of the axel on a rear trailing arm setup.  Like in a C-10 or Impala.

The bag IS NOT designed for a front control arm suspension.  The Air House 2 is the recommended bag for front suspension.

Higher Travel

Double bellow construction greatly increases the travel of the air spring but at the cost for angle capacity and Hi Load applications.

Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated.

Specifications

3.25" Collapsed Height

11" Extended Height

5.875" Max Diameter

Available in 1/4", 3/8" and 1/2" NPT

4.75" - 7.75" Optimum Ride Height

Up to 2500 Lbs. Force at 115 PSI

Heavy Duty Thick Rubber Construction

525 PSI Tested Burst Pressure

Rear Suspension Installation

Straight or Slight Angled Installation

Industry Standard Bolt Pattern

Machined 6061 Aluminum Caps

A punchy Headline

Seeing is Believing!



Specifications

Port Size 1/4 or 3/8 or 1/2
