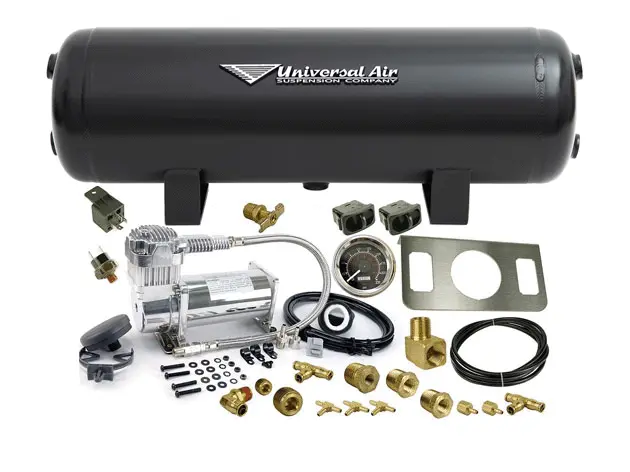

Manual Paddle FB Air Management Package
Shipping Weight:
65 lb
Build Your Manual Paddle Air Management
This System is designed for the simplest, lowest cost way to make your vehicle reliably adjustable. There is no electronic valves, switch boxes etc. Its a 2 valve operation in a FB or Single Axle configuration.
Like all of our Air Management Kits, ALL the necessary fittings and accessories are included to hook up the system.
We do recommend to run the FBSS (individual) valves if your doing an entire vehicle to reduce body roll due to air transfer.
There will be no ride quality difference to even the High End Auto Leveling System. Your just the Leveling System. Its a better choice to get the proper Bags/Brackets/Struts and upgrade your management down the road if you want the bells and whistles.
The Compressors/Tanks are the same throughout all the management kits.
Plan Ahead and you can simply upgrade your valves/controller if you desire down the road.
Air Tank
Bigger isn't always better. Your tank is a prime example. The larger your tank is, the more non stop play time you will have. However, when the compressors turn on, the longer it will take to fill back up.
We generally recommend 4 gallons of air for most vehicles. Of course we will be including all the fittings needed based off your selections above.
First step is to measure out your spacing to see what will fit best. Have your Own Custom Tank you would like to use? Select "No Tank" and don't forget to add your required fittings. Your always welcome to Contact Us for help
3 Gallon - 7" Diameter x 20" Long Back Ports
4 Gallon - 7" Diameter x 24" Long End Ports
4.5 Gallon - 7" Diameter x 28" Long Back Ports
5 Gallon - 7" Diameter x 32" Long Back Ports
No Tank option removes the tank and associated fittings to connect as tanks come in various different port configurations.
Choose your Compressors
We always recommend dual compressors for drivers. Dual compressors will last a lot longer since they are only running half the time. When they wear out you will notice its taking forever to fill Selecting the options will include the required fittings to install.
If your feeling overwhelmed with the compressor choices, here is our recommendations. To save a few bucks, 444's are the way to go. If you want the best, 485's are for you. If you would like the quietest, 410's are the way to go
A punchy Headline
Single 380
If you're going to run a single compressor, this is one to run. 200 PSI.
Dual 380
When space is tight, this is the way to go. With the smaller motor, it will fit into tighter spaces. 200 PSI.
Dual 400
Fastest filling, but lower duty cycle and only 150 PSI rated.
Dual 444
By far the most popular choice. Excellent cost to performance ratio. 200 PSI.
Dual 480
Old faithful compressor. Larger head then the 444 for better cooling. We feel if you want a better compressor then the 444, step up to the 410 or 485. 200 PSI.
Dual 485
Newer version of the 480 compressor. Heavier duty motor with highest duty cycle, and faster filling compared to the 444/480. 200 PSI.
Power Kit
A punchy Headline
The Power Kit is recommend for anyone without a ton of extra heavy power wire laying around from that stereo install.
The Power Kit includes all the accessories required to hook up the compressors. 4 AWG Heavy Gauge Power Wire, Ring Terminals, Wire Clamps, ANL Fuse, ANL Fuse Holder, 80 AMP Solenoid Etc.
Gauge Color
Probably the simplest choice your going to have to make all week.
Which color gauge do you want.
White Faced
A color block
Black Faced
Another color block
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Tank | 3 Gallon Aluminum or 4 Gallon Black Aluminum or 4 Gallon Silver Aluminum or 4.5 Gallon Aluminum or 5 Gallon Aluminum or No Tank |
| Compressor | No Compressor or Single Viair 380 or Dual Viair 380 Chrome or Dual Viair 380 Black or Dual Viair 400 Chrome or Dual Viair 400 Black or Dual Viair 444 Chrome or Dual Viair 444 Black or Dual Viair 480 Chrome or Dual Viair 480 Black or Dual Viair 485 Platinum or Dual Viair 485 Black |
| Power Kit | No Power Kit or Yes Power Kit |
