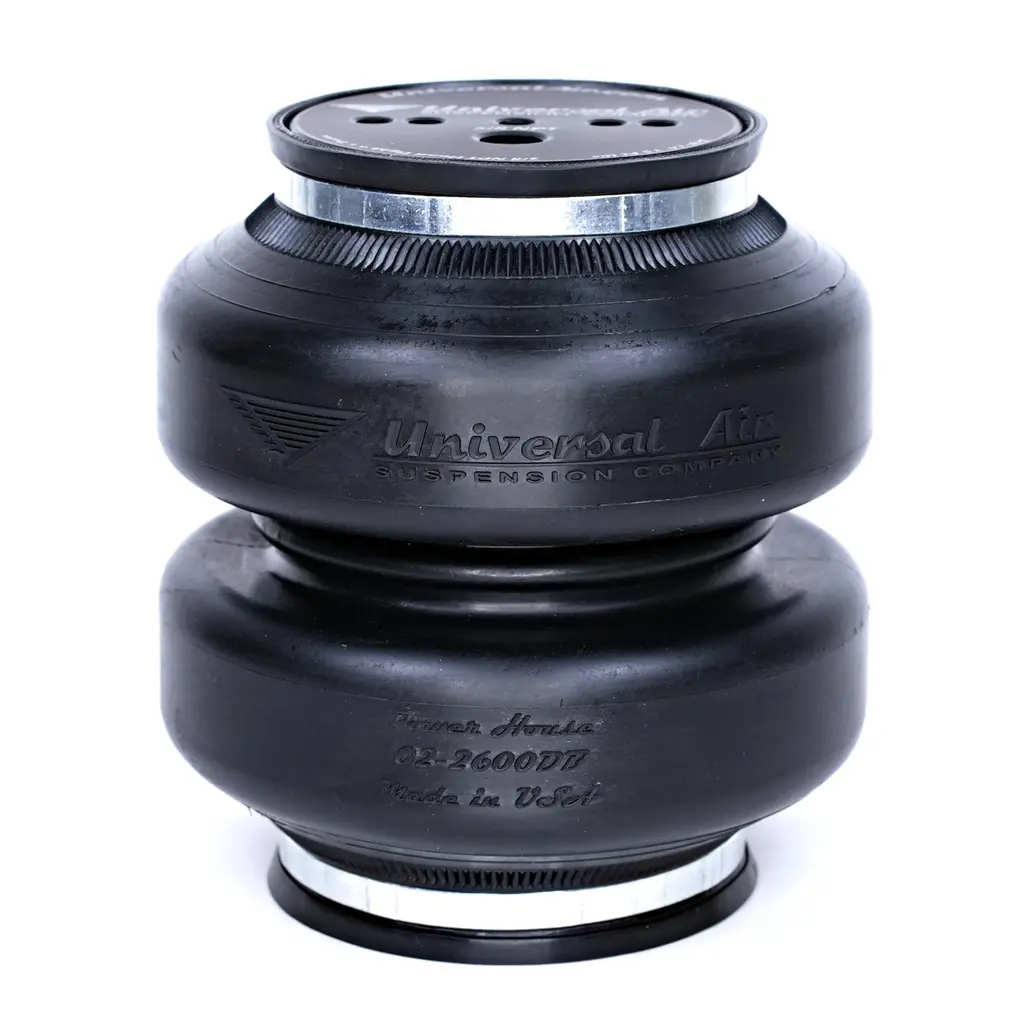

Power House
By Universal Air
Engineered for High Travel Rear Suspension Applications
The Powerhouse Air Bag is designed for Rear Suspension only. Not designed for an A-Arm front suspension or high angle applications. This bag will give you extra clearances for your wheels without unbolting your bags to change your tires for your skirt vehicles or tucking lug-nuts. Maybe you just want to 3 wheel.
Specifications
3.25" Collapsed Height
13" Extended Height
7" Max Diameter
Available in 1/4", 3/8" and 1/2" NPT
4.5" - 9.5" Optimum Ride Height
Up to 2300 Lbs. Force at 115 PSI
Heavy Duty Thick Rubber Construction
615 PSI Tested Burst Pressure
Rear Installation
Straight Installation

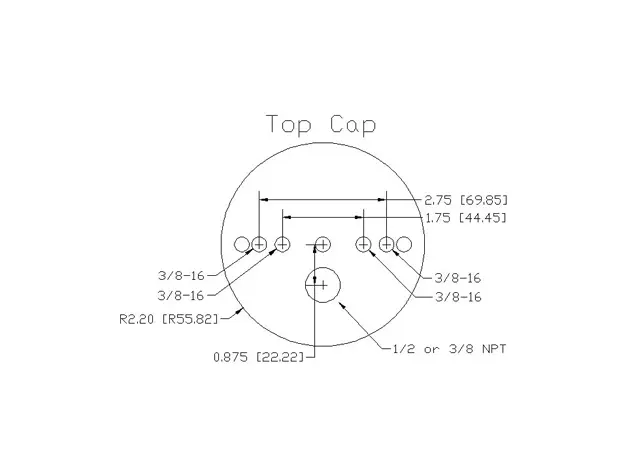

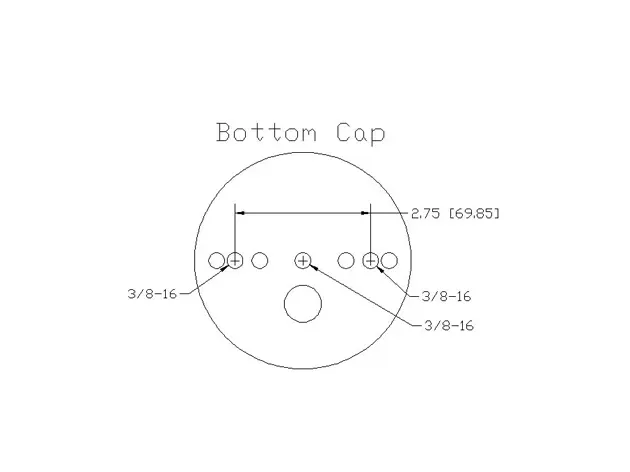

Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps
Seeing is Believing!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Port Size | 1/4 or 3/8 or 1/2 |
