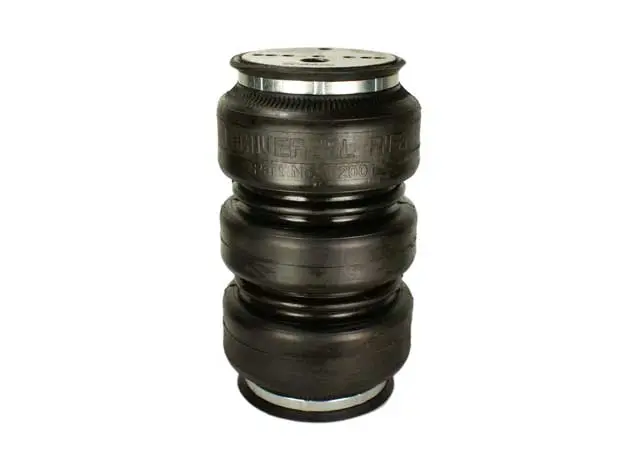

Triple Play

By Universal Air

Triple Convoluted for Rear Suspension.

The Triple Play is the perfect choice for your Light Weight rear suspension that doesn't angle too much.  Engineered for more extension at the sacrifice of stability in heavy/angled applications.

Recommended Mounting is directly to the axel in a rear suspension application, or just Infront of the axel on a rear trailing arm setup.  Like in a C-10 or Impala.

The bag IS NOT designed for a front control arm suspension.  The Air House 2 is the recommended bag for front suspension.

Triple bellow construction greatly increases the travel of the air spring but at the cost for angle capacity and Hi Load applications.

Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated.

Specifications

4.5" Collapsed Height

15.75" Extended Height

5.875" Max Diameter

Available in 1/4", 3/8" and 1/2" NPT

6" - 10" Optimum Ride Height

11.25" Travel

Heavy Duty Thick Rubber Construction

Light Vehicle Applications

Rear Suspension Installation

Straight or Slight Angled Installation

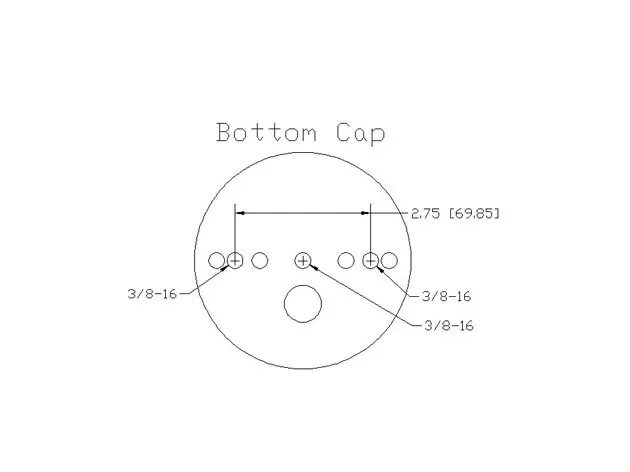

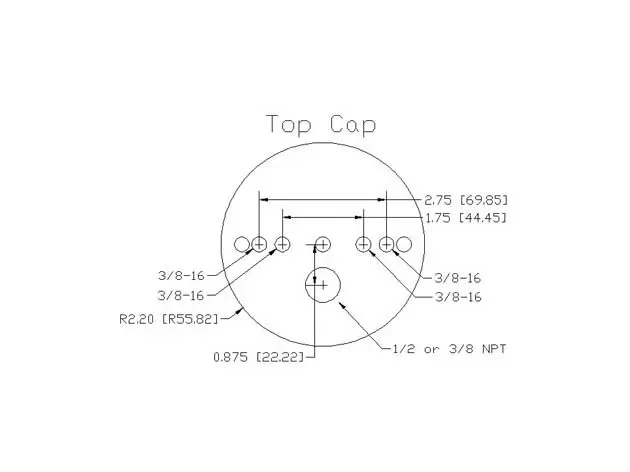

Industry Standard Bolt Pattern

Machined 6061 Aluminum Caps

Seeing is Believing!



Specifications

Port Size 1/4 or 3/8 or 1/2
