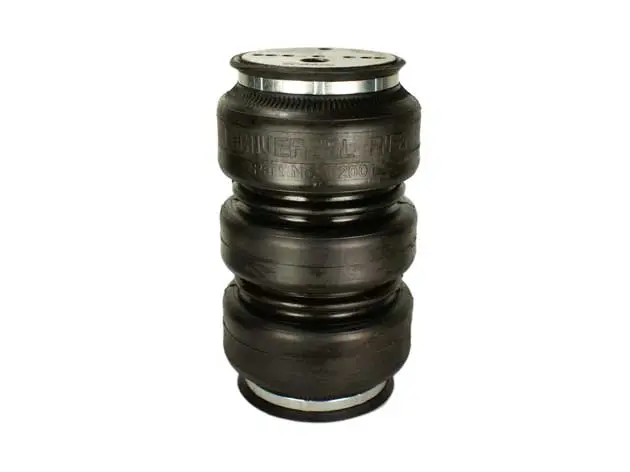

Triple Play
By Universal Air
Triple Convoluted for Rear Suspension.
The Triple Play is the perfect choice for your Light Weight rear suspension that doesn't angle too much. Engineered for more extension at the sacrifice of stability in heavy/angled applications.
Recommended Mounting is directly to the axel in a rear suspension application, or just Infront of the axel on a rear trailing arm setup. Like in a C-10 or Impala.
The bag IS NOT designed for a front control arm suspension. The Air House 2 is the recommended bag for front suspension.
Triple bellow construction greatly increases the travel of the air spring but at the cost for angle capacity and Hi Load applications.
Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated.
Specifications
4.5" Collapsed Height
15.75" Extended Height
5.875" Max Diameter
Available in 1/4", 3/8" and 1/2" NPT
6" - 10" Optimum Ride Height
11.25" Travel
Heavy Duty Thick Rubber Construction
Light Vehicle Applications
Rear Suspension Installation
Straight or Slight Angled Installation
Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps
Seeing is Believing!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Port Size | 1/4 or 3/8 or 1/2 |
