A punchy Headline
Take your build to the Next Level
Who wants a Plain Jane Air Tank? Time
to take your Custom Air Suspension System to
the next level with our patent pending modular billet tank
system. 5 Integrated support/mounting rods are the platforms to build your dream. Mount all the components
onto the tank, or separate, let
the creativity flow!
A punchy Headline

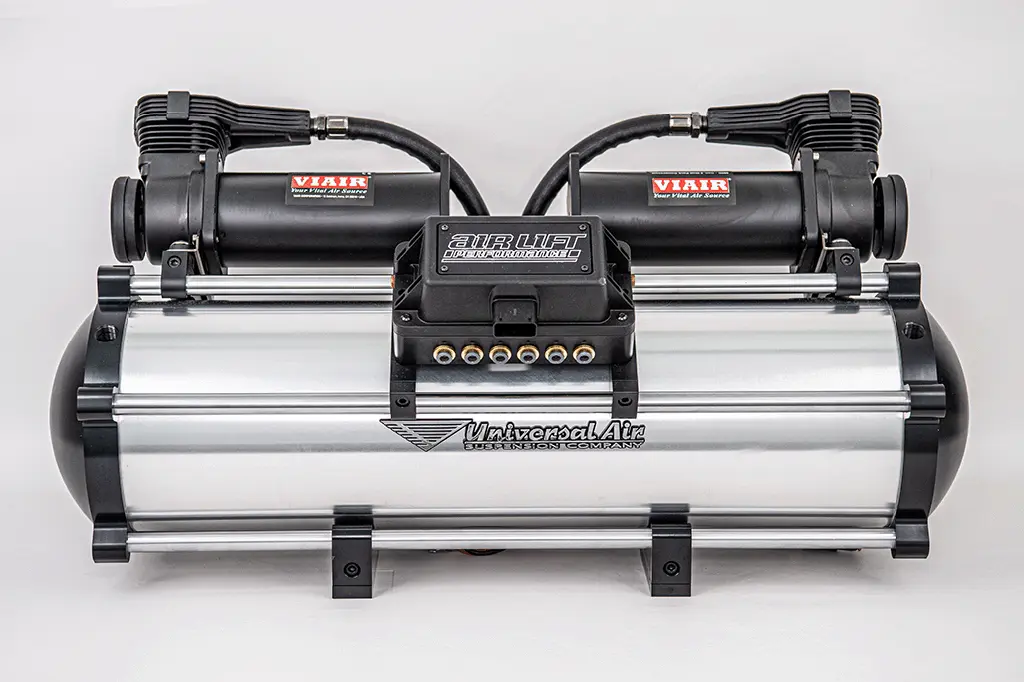

The Tank will arrive with the bottom clamp-on mounting feet. Optional bolt-on brackets
give you the flexibility to add accessories onto your tank.
Mounting to any of the 5 sides. The brackets have provision for the
standard Viair bolt-on pattern to mount the compressor
directly to the bracket along with a 5/16 counter bored thru hole from
the bottom for your standard Airlift 3P/3H Manifold.
A punchy Headline
The tank comes in 12 different options. Black and silver are selectable colors for the cap and tube separately. 24", 28" and 32" in overall length. With the bolt-together design, many customers have disassembled the tanks to customize. Polished, carbon fiber wrapped, plated, powder coated and painted to match their build!
Adapter brackets are available for the Accuair VU4, Accuair ECU and Slam Manifold. Make air suspension super compact, clean, and easy to service. No matter if you want to show everything off or make it clean and simple. The Modular Billet Tank will fit your needs!
Specifications
9 5/8" Tall with Leg
9" Deep
Machined Aluminum End Caps
Thick Aluminum Extrusion Center
5 Cross Shafts/Mounting Rails
Clamp on Brackets Available
Over 1000 PSI Burst Pressure
24" = 3.38 Gallons
Bolt Together Design
Customizable
28" = 4.02 Gallons
32" = 4.67 Gallons
Silver and Black Cap Available
Silver and Black Tube Available
2 3/8" NPT on Each Cap
1 1/4" NPT on Each Cap
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Choose Length | 24" - 3.38 Gallons or 28" - 4.02 Gallons or 32" - 4.67 Gallons |
| Color | Black Cap, Silver Tube or Silver Cap, Black Tube or Black Cap, Black Tube or Silver Cap, Silver Tub |
