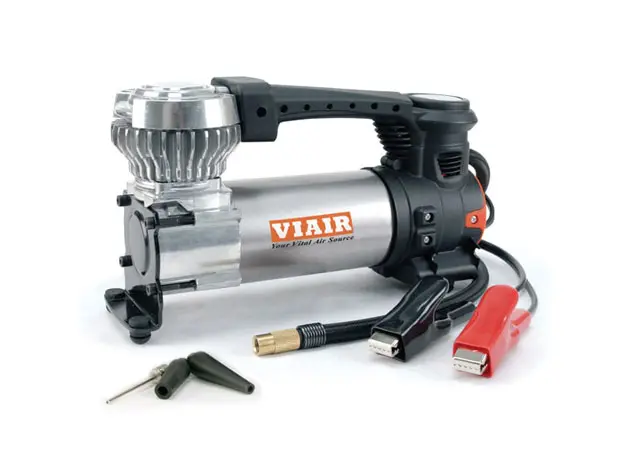

88P Portable Air Compressor

88P Portable Compressor Kit (12V, 120 PSI, for Up to 33" Tires)

88P is a newly-designed, portable compressor, capable of inflating up to 33-inch tires. Attach the heavy duty battery clamps to your vehicle’s battery, and start the engine. Connect to a tire valve stem and turn the unit on. Tire pressure can easily be checked using the gauge incorporated into the top of the unit.

Please Note: The 88P does not work with Presta bicycle valves.

Features & Specifications

Features	Specifications
– 120 PSI Pressure Gauge	– 12-Volt
– LED Work Light / Power Indicator	– Permanent Magnetic Motor
– Dual Battery Clamps	– Permanent Magnetic Motor
– Solid Brass Twist-on Tire Chuck	– Max. Working Pressure: 120 PSI
– 3 pc. Inflation Tips Kit	– Max. Amp Draw: 20 Amps
–	– Ingress Protection Rating: IP53
–	– Max. Ambient Temp: +158°F
–	– Min. Ambient Temp: -4°F
–	– Dimensions: 9.8″L x 3.2″W x 5.6″H
–	– Net Weight: 4.75 lbs.
–	– Power Cord Length: 10 ft.
–	– Air Hose Length: 16 ft.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	1.47	17	0	41.7	17
10	1.44	18	1.0	39.5	18
20	1.34	18	2.0	35.6	18
30	1.25	18	3.0	31.5	19
40	1.15	18	4.0	26.9	20
50	1.04	19	5.0	23.6	19
60	0.93	20	6.0	19.1	17
70	0.86	19	7.0	14.9	16
80	0.75	18	8.0	11.1	15
90	0.64	17
100	0.54	16
110	0.45	15
120	0.35	14

* Supply Voltage: 13.8 Volts

Fill Rates

195/70R14	Fill Rate
20 to 30 PSI	35 sec. (± 05 sec.)
30 to 40 PSI	40 sec. (± 05 sec.)
225/60R18	Fill Rate
20 to 30 PSI	50 sec. (± 05 sec.)
30 to 40 PSI	1 min. 00 sec. (± 05 sec.)

VIAIR's Portable Tire Inflators

User Manual

Dimensional Drawing

88P Portable Air Compressor
