92C Compressor Kit

92C Compressor Kit w/ External Check Valve & Intake Filter (12V, 9% Duty, Sealed)

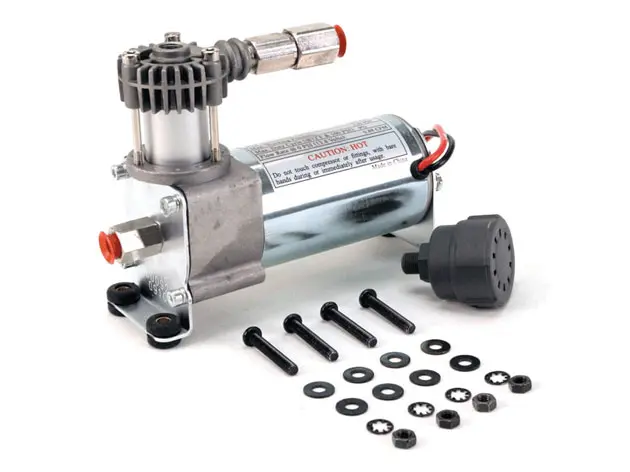

VIAIR's 92C compressor kit is a light duty solution for smaller air applications. It is meant to fill air tanks 1.0 gallon or less. This oil-less compressor comes with an external check valve, four post mounting configuration, vibration isolators, external air filter and hardware. Compressor is rated to 13.8 volts from a charging car battery. The 92C is approved for use in FIRST Robotics Competitions.

Features & Specifications

Features	Specifications
– Check Valve	– 12-Volt
– Vibration Isolators	– Permanent Magnetic Motor
– Mounting Hardware	– Duty Cycle: 9% @ 100 PSI
– Direct Mount Air Filter Assembly	– Max. Working Pressure: 120 PSI
– Installation Instructions	– Max. Air Tank Size: 1.0 Gallon
–	– Max. Amp Draw: 10 Amps
–	– Ingress Protection Rating: IP54
–	– Max. Ambient Temp: +158°F
–	– Min. Ambient Temp: -4°F
–	– Dimensions: 7.6″L x 2.0″W x 4.6″H
–	– Net Weight: 2.45 lbs.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	1.03	7	0	29.0	7
10	0.71	8	1.0	19.0	8
20	0.67	8	2.0	18.0	9
30	0.64	9	3.0	18.7	9
40	0.60	9	4.0	15.0	10
50	0.57	9	5.0	13.5	10
60	0.53	10	6.0	12.5	10
70	0.48	10	7.0	11.0	10
80	0.45	10	8.0	10.0	9
90	0.43	10
100	0.39	9
110	0.36	9
120	0.34	9

* Supply Voltage: 13.8 Volts

Fill Rates

0.5 Gallon Tank	Fill Rate
0 to 105 PSI	1 min. 08 sec. (± 05 sec.)
85 to 105 PSI	16 sec. (± 03 sec.)
0 to 120 PSI	1 min. 23 sec. (± 05 sec.)
90 to 120 PSI	27 sec. (± 03 sec.)
1.0 Gallon Tank	Fill Rate
0 to 105 PSI	2 min. 20 sec. (± 10 sec.)
85 to 105 PSI	35 sec. (± 05 sec.)
0 to 120 PSI	3 min. 04 sec. (± 10 sec.)
90 to 120 PSI	54 sec. (± 05 sec.)
