98C Compressor Kit

98C Compressor Kit w/ Omega Style Mounting Bracket (12V, 10% Duty, Sealed)

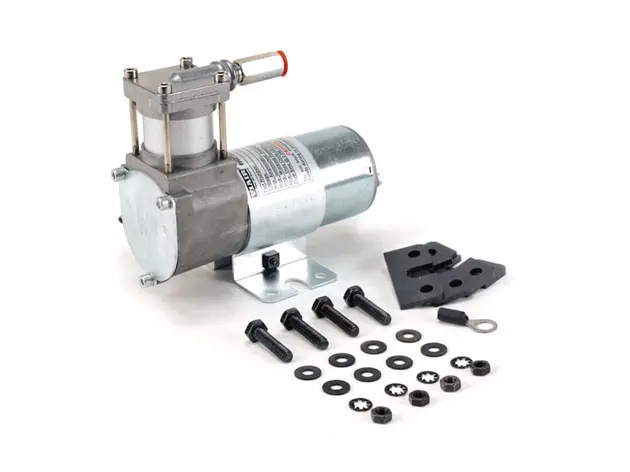

VIAIR's 98C compressor kit is a light duty solution for smaller air applications. It is meant to fill air tanks 1.0 gallon or less. This oil-less compressor comes with an external check valve, an omega mounting bracket, vibration isolators and hardware. Air is drawn in through porous gaskets, so no air filter is required. Compressor is rated to 13.8 volts from a charging car battery. The 98C is a popular choice for Motorcycle Air Suspension.

Features & Specifications

– Omega Bracket	– 12-Volt
– Check Valve	– Permanent Magnetic Motor
– Vibration Isolators	– Duty Cycle: 10% @ 100 PSI
– Mounting Hardware	– Max. Working Pressure: 130 PSI
– Installation Instructions	– Max. Air Tank Size: 1.0 Gallon
–	– Max. 12V Amp Draw: 12 Amps
–	– Ingress Protection Rating: IP54
–	– Max. Ambient Temp: +158°F
–	– Min. Ambient Temp: -4°F
–	– Dimensions: 5.6″L x 3.1″W x 4.7″H
–	– Net Weight: 2.55 lbs.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	1.53	7	0	43.5	7
10	1.00	9	1.0	28.0	9
20	0.95	10	2.0	25.5	11
30	0.90	11	3.0	22.7	11
40	0.85	11	4.0	20.7	12
50	0.77	12	5.0	18.3	12
60	0.72	12	6.0	16.3	12
70	0.65	12	7.0	13.7	12
80	0.60	12	8.0	11.7	12
90	0.54	12	9.0	10.0	11
100	0.48	12
110	0.44	12
120	0.39	12
130	0.35	11

* Supply Voltage: 13.8 Volts

Fill Rates

0.5 Gallon Tank	Fill Rate
0 to 105 PSI	50 sec. (± 05 sec.)
85 to 105 PSI	15 sec. (± 03 sec.)
0 to 120 PSI	1 min. 05 sec. (± 05 sec.)
0 to 120 PSI	21 sec. (± 03 sec.)
1.0 Gallon Tank	Fill Rate
0 to 105 PSI	1 min. 40 sec. (± 10 sec.)
85 to 105 PSI	30 sec. (± 05 sec.)
0 to 120 PSI	2 min. 10 sec. (± 10 sec.)
0 to 120 PSI	45 sec. (± 05 sec.)
