95C Compressor Kit - 24 Volt

https://universalair-uas.odoo.com/web/image/product.template/604/image_1920?unique=529793e
(0 review)

95C Compressor Kit w/ External Check Valve & Omega Bracket (24V, 9% Duty, Sealed)

$ 130.95 130.95 USD $ 130.95

$ 130.95

    This combination does not exist.

    Contact Us



    Barcode: 818114009952
    Shipping Weight: 3 lb
    Internal Reference: VA-02495
    Brand: Viair
    Manufacture Part Number: 02495

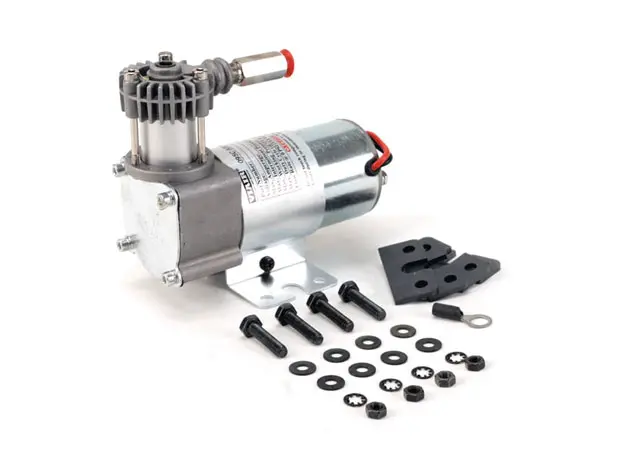

    95C Compressor Kit w/ External Check Valve & Omega Bracket (24V, 9% Duty, Sealed)

    VIAIR's 24 volt 95C compressor kit is a light duty solution for smaller air applications. It is meant to fill air tanks 1.0 gallon or less. This oil-less compressor comes with an external check valve, omega mounting bracket, vibration isolators and hardware. This compressor draws air in through porous gaskets and requires no air filter. Compressor is rated to 28.0 volts from a charging car battery.

    Features & Specifications

    Features
    		Specifications
    – Omega Bracket– 12-Volt / 24-Volt
    – Check Valve– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 9% @ 100 PSI
    – Mounting Hardware– Max. Working Pressure: 120 PSI
    – Installation Instructions– Max. Air Tank Size: 1.0 Gallon
    –– Max. 12V Amp Draw: 10 Amps
    –– Max. 24V Amp Draw: 5 Amps
    –– Ingress Protection Rating: IP54
    –– Max. Ambient Temp: +158°F
    –– Min. Ambient Temp: -4°F
    –– Dimensions: 5.4″L x 3.1″W x 4.6″H
    –– Net Weight: 2.55 lbs.

    12-Volt Compressor

    PSICFMABARLPMA
    0
    		1.037
    		0
    		29.07
    100.718
    		1.019.08
    200.678
    		2.018.09
    300.649
    		3.016.59
    400.609
    		4.015.010
    500.579
    		5.013.510
    600.53106.012.510
    700.48107.011.010
    800.45108.010.09
    900.4310


    1000.399



    1100.369



    1200.349



    * Supply Voltage: 13.8 Volts

    24-Volt Compressor

    PSICFMABARLPMA
    0
    		1.0340
    		29.04
    100.7141.019.04
    20
    		0.6742.018.04
    30
    		0.6443.016.55
    40
    		0.6054.015.0
    		5
    50
    		0.5755.013.55
    60
    		0.5356.012.55
    70
    		0.4857.011.05
    80
    		0.4558.010.05
    90
    		0.435


    100
    		0.395


    110
    		0.365


    120
    		0.345


    * Supply Voltage: 28.0 Volts

    12-Volt Compressor

    0.5 Gallon TankFill Rate
    0 to 105 PSI1 min. 08 sec. (± 05 sec.)
    85 to 105 PSI16 sec. (± 03 sec.)
    0 to 120 PSI1 min. 23 sec. (± 05 sec.)
    90 to 120 PSI27 sec. (± 03 sec.)
    1.0 Gallon TankFill Rate
    0 to 105 PSI2 min. 20 sec. (± 10 sec.)
    85 to 105 PSI35 sec. (± 05 sec.)
    0 to 120 PSI3 min. 04 sec. (± 10 sec.)
    90 to 120 PSI54 sec. (± 05 sec.)

    24-Volt Compressor

    0.5 Gallon TankFill Rate
    0 to 105 PSI1 min. 05 sec. (± 05 sec.)
    85 to 105 PSI15 sec. (± 03 sec.)
    0 to 120 PSI1 min. 20 sec. (± 05 sec.)
    90 to 120 PSI25 sec. (± 03 sec.)
    1.0 Gallon TankFill Rate
    0 to 105 PSI2 min. 10 sec. (± 10 sec.)
    85 to 105 PSI31 sec. (± 05 sec.)
    0 to 120 PSI2 min. 40 sec. (± 10 sec.)
    90 to 120 PSI50 sec. (± 05 sec.)
