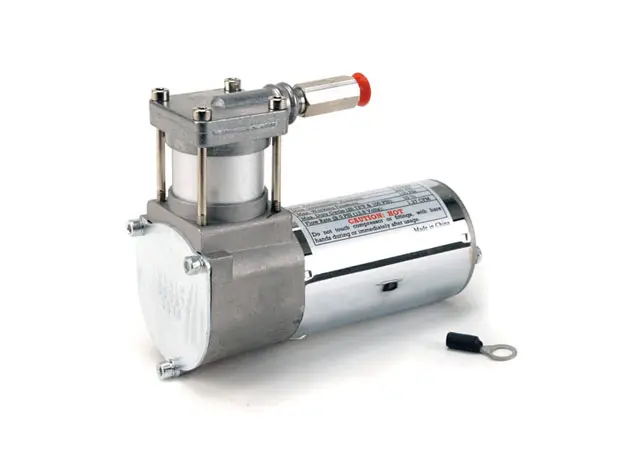

97C Compressor Kit - 24 Volt

https://universalair-uas.odoo.com/web/image/product.template/606/image_1920?unique=d3c1cef
(0 review)

97C Compressor Kit w/ External Check Valve, No Bracket (24V, 10% Duty, Sealed)

$ 116.95 116.95 USD $ 116.95

$ 116.95

    This combination does not exist.

    Contact Us



    Barcode: 818114009976
    Shipping Weight: 3 lb
    Internal Reference: VA-02497
    Brand: Viair
    Manufacture Part Number: 02497

    97C Compressor Kit w/ External Check Valve, No Bracket (24V, 10% Duty, Sealed)

    VIAIR's 24 volt 97C compressor kit is a light duty solution for smaller air applications. It is meant to fill air tanks 1.0 gallon or less. This oil-less compressor comes with an external check valve and chrome finish but does not include mounting option. Air is drawn in through porous gaskets, so no air filter is required. Compressor is rated to 28.0 volts from a charging car battery.

    Features & Specifications

    Features
    		Specifications
    – Check Valve– 12-Volt /24-Volt
    – Vibration Isolators– Permanent Magnetic Motor
    – Mounting Hardware– Duty Cycle: 10% @ 100 PSI
    – Installation Instructions– Max. Working Pressure: 130 PSI
    –– Max. Air Tank Size: 1.0 Gallon
    –– Max. 12V Amp Draw: 12 Amps
    –– Max. 24V Amp Draw: 7 Amps
    –– Ingress Protection Rating: IP54
    –– Max. Ambient Temp: +158°F
    –– Min. Ambient Temp: -4°F
    –– Dimensions: 5.6″L x 2.2″W x 4.4″H
    –– Net Weight: 2.25 lbs.

    12-Volt Compressor

    PSICFMABARLPMA
    0
    		1.537
    		0
    		43.57
    101.009
    		1.028.09
    200.9510
    		2.025.511
    300.9011
    		3.022.711
    400.8511
    		4.020.712
    500.77125.018.312
    600.72126.016.312
    700.65127.013.712
    800.60128.011.712
    900.54129.010.011
    1000.4812


    1100.4412


    1200.3912


    130
    		0.3511



    * Supply Voltage: 13.8 Volts

    24-Volt Compressor

    PSICFMABARLPMA
    0
    		1.274
    		0
    		36.04
    101.095
    		1.028.55
    201.035
    		2.026.55
    300.965
    		3.024.76
    400.906
    		4.021.76
    500.8365.019.77
    600.7666.017.07
    700.7067.014.37
    800.6378.011.77
    900.5679.08.76
    1000.517


    1100.427


    1200.357


    130
    		0.316



    * Supply Voltage: 28.0 Volts

    12-Volt Compressor

    0.5 Gallon TankFill Rate
    0 to 105 PSI50 sec. (± 05 sec.)
    85 to 105 PSI15 sec. (± 03 sec.)
    0 to 120 PSI1 min. 05 sec. (± 05 sec.)
    90 to 120 PSI21 sec. (± 03 sec.)
    1.0 Gallon TankFill Rate
    0 to 105 PSI1 min. 40 sec. (± 10 sec.)
    85 to 105 PSI30 sec. (± 05 sec.)
    0 to 120 PSI2 min. 10 sec. (± 10 sec.)
    90 to 120 PSI45 sec. (± 05 sec.)

    24-Volt Compressor

    0.5 Gallon TankFill Rate
    0 to 105 PSI50 sec. (± 05 sec.)
    85 to 105 PSI15 sec. (± 03 sec.)
    0 to 120 PSI1 min. 03 sec. (± 05 sec.)
    90 to 120 PSI20 sec. (± 03 sec.)
    1.0 Gallon TankFill Rate
    0 to 105 PSI1 min. 40 sec. (± 05 sec.)
    85 to 105 PSI30 sec. (± 05 sec.)
    0 to 120 PSI2 min. 05 sec. (± 05 sec.)
    90 to 120 PSI45 sec. (± 05 sec.)
