Quarter Duty Onboard Air System

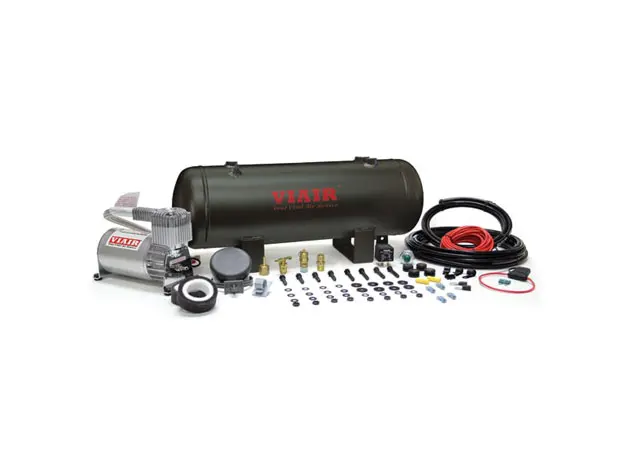

Quarter Duty Onboard Air System (12V, 120 PSI Compressor, 2.0 Gal. Tank)

Quarter Duty Cycle Onboard Air System is a smaller, 120 psi onboard air system, suitable for many pneumatic needs, including smaller inflation tasks (not including the inflation of automotive tires), air horns and more. The 25% Duty Cycle Onboard Air System will provide enough service time to operate for about 10 minutes of continued use, providing you give the system 30 minutes to cool down afterwards.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

Features & Specifications

Features	Specifications
– 2.0 Gallon VIAIR Air Tank	– 12-Volt
– 275C VIAIR Air Compressor w/Thermal Overload Protector	– Permanent Magnetic Motor
– Pressure Switch (90 PSI on, 120 PSI off)	– Duty Cycle: 25% @ 100 PSI
– 40-Amp Relay	– Max. Working Pressure: 120 PSI
– 1/4” NPT 145 PSI Safety Valve	– Max. Amp Draw: 18 Amps
– 1/4” Drain Cock	– Ingress Protection Rating: IP54
– 1/4” Compression Fitting	–
– 20ft. 16 Gauge Wire with Inline Fuse Holder	–
– Accessory Airline	–
– Electrical Connections	–
*All Fittings are NPT rated unless otherwise noted.*	Wiring harness NOT included.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	2.03	10	0	57.5	10
10	1.17	12	1.0	32.0	13
20	1.11	13	2.0	30.0	14
30	1.04	15	3.0	28.5	16
40	1.01	15	4.0	26.5	16
50	0.97	16	5.0	24.5	17
60	0.92	16	6.0	22.5	17
70	0.88	17	7.0	21.5	18
80	0.83	17	8.0	20.0	18
90	0.79	17
100	0.76	18
110	0.72	18
120	0.69	18

* Supply Voltage: 13.8 Volts

Fill Rates

2.0 Gallon Tank	Fill Rate
0 to 120 PSI	2 min. 22 sec. (± 10 sec.)
90 to 120 PSI	46 sec. (± 05 sec.)
