Medium Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gal. Tank)

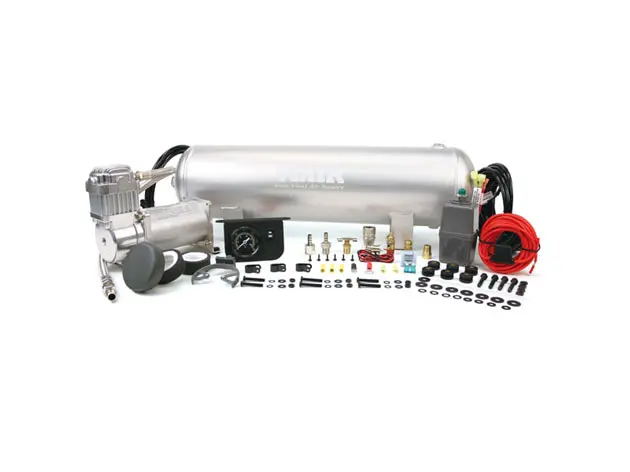

VIAIR’s Medium Duty Onboard Air System is a pre-packaged compressed
air solution that provides a 33% duty cycle 325C compressor, 2.5 gallon
air tank, and all components needed to
install basic vehicle-based pneumatics.
Please Note: Pressure Switch w/Relay (PNs 90110, 90111,
90113, 90118) is not a sealed unit and should be installed in an area
protected from the elements to prevent damage and/or failure.
Use
thread sealant for proper installation. Thread tape is not
recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft.
lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
Performance Data
| PSI | CFM | A | BAR | LPM | A |
0
| 1.59 | 14
| 0
| 45.0 | 14
|
| 10 | 1.40 | 16
| 1.0 | 37.6 | 16
|
| 20 | 1.24 | 16
| 2.0 | 34.1 | 18
|
| 30 | 1.20 | 18
| 3.0 | 32.3 | 18
|
| 40 | 1.17 | 18
| 4.0 | 29.1 | 20
|
| 50 | 1.08 | 19
| 5.0 | 26.0 | 21 |
| 60 | 1.01 | 20
| 6.0 | 23.7 | 21 |
| 70 | 0.93 | 21 | 7.0 | 21.5 | 21 |
| 80 | 0.87 | 21 | 8.0 | 19.7 | 21 |
| 90 | 0.82 | 21 | 9.0 | 18.0 | 21 |
| 100 | 0.77 | 21 | 10.0
| 16.5 | 21 |
| 110 | 0.72 | 21 |
|
|
|
| 120 | 0.68 | 21 |
|
|
|
| 130 | 0.64 | 21 |
|
|
|
| 140 | 0.60 | 21 |
|
|
|
150
| 0.57 | 21 |
|
|
|
* Supply Voltage: 13.8 Volts
