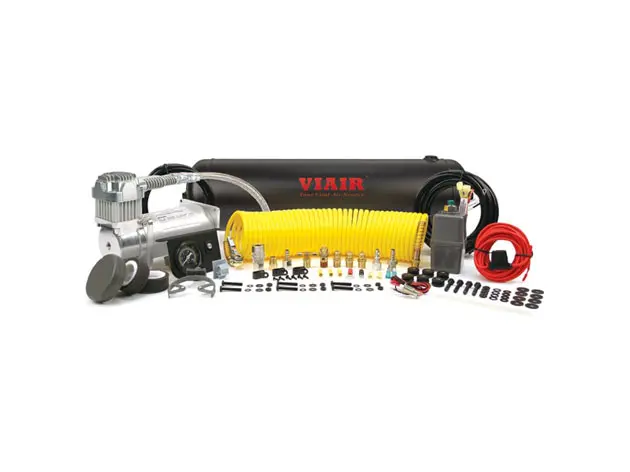

Heavy Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gal. Tank)

$ 501.50 501.5 USD $ 501.50

$ 501.50

    This combination does not exist.

    Contact Us



    Barcode: 818114002052
    Shipping Weight: 32 lb
    Internal Reference: VA-10005
    Brand: Viair
    Manufacture Part Number: 10005

    Heavy Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gal. Tank)

    VIAIR’s Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box.

    Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

    Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – 2.5 Gallon VIAIR Air Tank– 12-Volt
    – 400C VIAIR Compressor w/Thermal Overload Protector– Permanent Magnetic Motor
    – 35ft. Coil Hose with Tire Chuck– Duty Cycle: 33% @ 100 PSI
    – 1/4” Quick Connect Stud (F)– Max. Working Pressure: 150 PSI
    – 1/4” Quick Connect Coupler (F)– 1/4” Quick Connect Coupler (F)
    – Dash Panel Gauge with ON/OFF Switch– Max. Amp Draw: 28 Amps
    – Pressure Switch with Relay (110 PSI on, 145 PSI off)– Ingress Protection Rating: IP67
    – Reducer: 1/8” (F) to 1/4” (M)–
    – 1/4” 175 PSI Safety Valve–
    – 1/4” Drain Cock–
    – (3) 1/4” Compression Fittings–
    – 20ft. 12-Gauge Wire with Inline Fuse Holder–
    – 4” Strip of Continuous Grommet Material–
    – Accessory Airline–
     – Electrical Connections–
    All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

    Performance Data

    PSICFMABARLPMA
    0
    		2.6216
    		0
    		74.016
    10
    		2.3918
    		1.065.020
    20
    		2.2120
    		2.060.023
    30
    		2.1122
    		3.056.025
    40
    		2.0124
    		4.053.027
    50
    		1.9325
    		5.049.028
    60
    		1.8426
    		6.046.028
    70
    		1.73277.042.028
    80
    		1.65278.038.028
    90
    		1.52279.035.027
    100
    		1.452710.031.027
    110
    		1.3527


    120
    		1.2627


    130
    		1.1927


    140
    		1.0827


    150
    		1.0126



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 145 PSI2 min. 20 sec. (± 05 sec.)
    110 to 145 PSI48 sec. (± 03 sec.)
    33” x 12.5″Fill Rate
    0 to 30 PSI4 min. 20 sec. (± 10 sec.)
    15 to 30 PSI2 min. 05 sec. (± 05 sec.)
    35” x 12.5”Fill Rate
    0 to 30 PSI5 min. 20 sec. (± 15 sec.)
    15 to 30 PSI2 min. 45 sec. (± 10 sec.)
    RV Tires 275/80r22.5Fill Rate
    80 to 90 PSI30 sec. (± 05 sec.)
    90 to 100 PSI3 min. 50 sec. (± 10 sec.)
    110 to 130 PSI4 min. 37 sec. (± 15 sec.)
