Constant Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gal. Tank)

$ 522.50 522.5 USD $ 522.50

$ 522.50

    This combination does not exist.

    Contact Us



    Barcode: 818114002076
    Shipping Weight: 34 lb
    Internal Reference: VA-10007
    Brand: Viair
    Manufacture Part Number: 10007

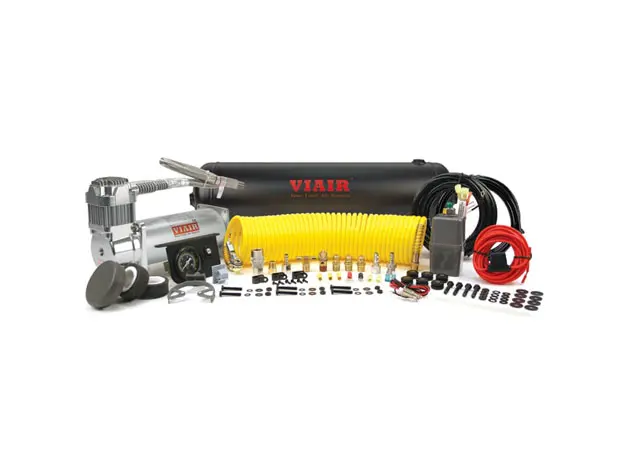

    Constant Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gal. Tank)

    VIAIR’s Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle compressors, a 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires.

    Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

    Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

    Features & Specifications

    – 2.5 Gallon VIAIR Air Tank– 12-Volt
    – 450C VIAIR Compressor w/Thermal Overload Protector– Permanent Magnetic Motor
    – 35ft. Coil Hose with Tire Chuck– Duty Cycle: 100% @ 100 PSI
    – Dash Panel Gauge with ON/OFF Switch– Max. Working Pressure: 150 PSI
    – Pressure Switch with Relay (110 PSI on, 145 PSI off)– Max. Amp Draw: 23 Amps
    – Reducer: 1/8” (F) to 1/4” (M)– Ingress Protection Rating: IP67
    – 1/4” Quick Connect Stud (F)–
    – 1/4” Quick Connect Coupler (F)–
    – 1/4” 175 PSI Safety Valve–
    – 1/4” Drain Cock–
    – (3) 1/4” Compression Fittings–
    – 20ft. 12-Gauge Wire with Inline Fuse Holder–
    – 4” Strip of Continuous Grommet Material–
    – Accessory Airline–
     – Electrical Connections–

    All Fittings are NPT rated unless otherwise noted.

    		Wiring harness NOT included.

    Performance Data

    PSICFMABARLPMA
    01.8012
    		0
    		51.012
    101.7514
    		1.047.615
    201.6016
    		2.043.317
    301.5217
    		3.038.218
    401.3918
    		4.034.019
    501.2719
    		5.030.5
    		20
    601.1819
    		6.028.121
    701.0920
    		7.026.422
    801.0420
    		8.025.023
    900.9721
    		9.023.022
    1000.9422
    		10.021.021
    1100.9023



    1200.8623



    1300.8122



    1400.7621



    150
    		0.7220



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 145 PSI3 min. 02 sec. (± 10 sec.)
    110 to 145 PSI59 sec. (± 05 sec.)
    35” x 12.5”Fill Rate
    0 to 30 PSI6 min. 55 sec. (± 15 sec.)
    15 to 30 PSI3 min. 30 sec. (± 10 sec.)
    37” x 12.5”Fill Rate
    0 to 30 PSI7 min. 56 sec. (± 15 sec.)
    15 to 30 PSI4 min. 09 sec. (± 10 sec.)
    RV Tires 275/80r22.5Fill Rate
    80 to 90 PSI49 sec. (± 05 sec.)
    90 to 110 PSI5 min. 07 sec. (± 10 sec.)
    110 to 130 PSI6 min. 19 sec. (± 15 sec.)
