Super Heavy Duty Onboard Air System

https://universalair-uas.odoo.com/web/image/product.template/2224/image_1920?unique=3f366fc
(0 review)

Super Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)

$ 799.95 799.95 USD $ 799.95

$ 799.95

    This combination does not exist.

    Contact Us



    Barcode: 818114002083
    Shipping Weight: 39 lb
    Internal Reference: VA-10008
    Brand: Viair
    Manufacture Part Number: 10008

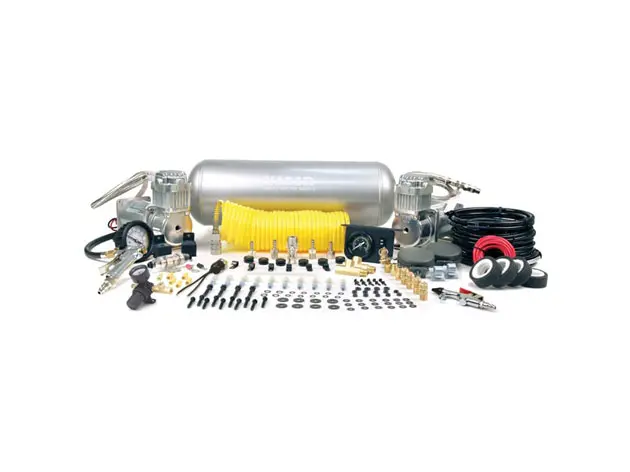

    Super Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)

    VIAIR’s Super Duty Onboard Air System is a pre-packaged compressed air solution that provides two fast 325C, 33% duty cycle compressors, a 2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – 2.0 Gallon VIAIR Air Tank– 12-Volt
    – (2) 325C VIAIR Compressors w/Thermal Overload Protectors– Permanent Magnetic Motor
    – (2) Thermal Overload Protectors– Duty Cycle: 33% @ 100 PSI
    – 30ft. Coil Hose with Quick Connects– Max. Working Pressure: 150 PSI
    – Tire Inflation Gun with 160 PSI Gauge– Max. Amp Draw: 38 Amps
    – Dash Panel Gauge with ON/OFF Switch– Ingress Protection Rating: IP67
    – 0-220 PSI Pressure Regulator–
    – Blow Gun Air Tool–
    – Sealed Pressure Switch (110 PSI on, 145 PSI off)–
    – (2) 40-amp Relays–
    – (2) T-Fittings (1/4” (M) x 1/4″ (F) x 1/8” (F))–
    – 1/4” Quick Connect Stud (F)–
    – 1/4” Quick Connect Coupler (F)–
    – 1/4” 175 PSI Safety Valve–
    – 1/4” Drain Cock–
    – (2) 1/8” BSP to 1/4” NPT–
    – (4) 1/4” Compression Fittings–
     – 20ft. 12-Gauge Wire with Inline Fuse Holder–
     – 4” Strip of Continuous Grommet Material–
    – Accessory Airline–
     – Electrical Connections–
    All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

    Performance Data

    PSICFMABARLPMA
    0
    		3.2122
    		0
    		91.022
    102.8124
    		1.076.028
    202.5427
    		2.068.031
    302.4030
    		3.064.033
    402.3032
    		4.059.035
    502.1933
    		5.055.036
    602.0734
    		6.053.036
    701.9835
    		7.051.036
    801.91368.047.037
    901.85369.045.037
    1001.783610.042.037
    1101.7337



    1201.6638



    1301.5937


    1401.5237


    1501.4537


    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 145 PSI1 min. 26 sec. (± 05 sec.)
    110 to 145 PSI25 sec. (± 03 sec.)
    33″ x 12.5″Fill Rate
    0 to 30 PSI3 min. 40 sec. (± 10 sec.)
    15 to 30 PSI1 min. 50 sec. (± 05 sec.)
    35″ x 12.5″Fill Rate
    0 to 30 PSI4 min. 36 sec. (± 10 sec.)
    15 to 30 PSI2 min. 20 sec. (± 05 sec.)
