X'treme Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)

$ 804.50 804.5 USD $ 804.50

$ 804.50

    This combination does not exist.

    Contact Us



    Barcode: 818114002090
    Shipping Weight: 42 lb
    Internal Reference: VA-10009
    Brand: Viair
    Manufacture Part Number: 10009

    X'treme Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)

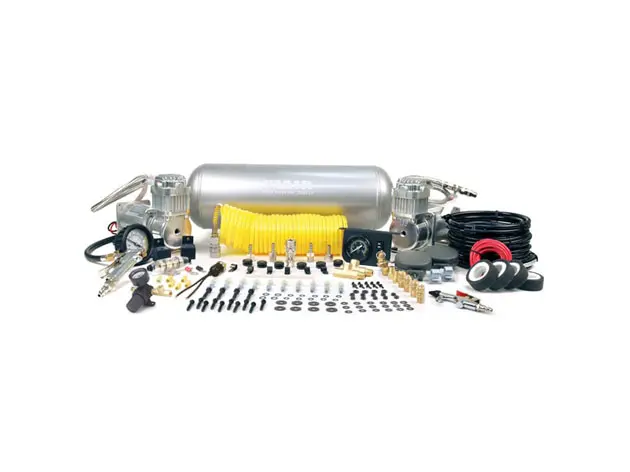

    VIAIR’s X’treme Duty Onboard Air System is a pre-packaged compressed air solution that provides two 350C, 100% duty cycle compressors, a 2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – 2.0 Gallon VIAIR Air Tank– 12-Volt
    – (2) 350C VIAIR Compressors w/Thermal Overload Protectors– Permanent Magnetic Motor
    – 30ft. Coil Hose with Quick Connects– Duty Cycle: 100% @ 100 PSI
    – Tire Inflation Gun with 160 PSI Gauge– Max. Working Pressure: 150 PSI
    – Dash Panel Gauge with ON/OFF Switch– Max. Amp Draw: 37 Amps
    – 0-220 PSI Pressure Regulator– Ingress Protection Rating: IP67
    – Blow Gun Air Tool–
    – Sealed Pressure Switch (110 PSI on, 145 PSI off)–
    – (2) 40-amp Relays–
    – (2) T-Fittings (1/4” (M) x 1/4″ (F) x 1/8” (F))–
    – 1/4” Quick Connect Stud (F)–
    – 1/4” Quick Connect Coupler (F)–
    – 1/4” 175 PSI Safety Valve–
    – 1/4” Drain Cock–
    – (2) 1/8” BSP to 1/4” NPT–
    – (4) 1/4” Compression Fittings–
     – 20ft. 12-Gauge Wire with Inline Fuse Holder–
     – 4” Strip of Continuous Grommet Material–
    – Accessory Airline–
     – Electrical Connections–
    All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

    Performance Data

    PSICFMABARLPMA
    0
    		2.6823
    		0
    		76.023
    10
    		2.3026
    		1.064.028
    20
    		2.2229
    		2.060.031
    30
    		2.1231
    		3.055.034
    40
    		1.9833
    		4.051.535
    50
    		1.8734
    		5.048.036
    60
    		1.8035
    		6.045.537
    70
    		1.7335
    		7.043.037
    80
    		1.6636
    		8.040.037
    90
    		1.5636
    		9.036.037
    100
    		1.523710.031.537
    110
    		1.4537


    120
    		1.3837


    130
    		1.2737


    140
    		1.1737


    150
    		1.0637


    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 145 PSI1 min. 40 sec. (± 05 sec.)
    110 to 145 PSI32 sec. (± 03 sec.)
    35″ x 12.5″Fill Rate
    0 to 30 PSI4 min. 40 sec. (± 10 sec.)
    15 to 30 PSI2 min. 20 sec. (± 05 sec.)
    37″ x 12.5″Fill Rate
    0 to 30 PSI5 min. 00 sec. (± 15 sec.)
    15 to 30 PSI2 min. 40 sec. (± 10 sec.)
