X'treme Duty Onboard Air System

(0 review)

X'treme Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)

$ 804.50 $ 804.50

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 818114002090
Shipping Weight: 42 lb
Internal Reference: VA-10009
Brand: Viair
Manufacture Part Number: 10009

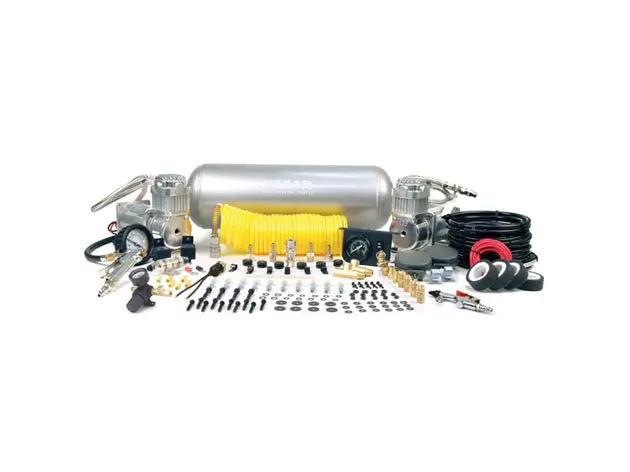

X'treme Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)

VIAIR’s X’treme Duty Onboard Air System is a pre-packaged compressed air solution that provides two 350C, 100% duty cycle compressors, a 2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

Features & Specifications

Features
Specifications
– 2.0 Gallon VIAIR Air Tank– 12-Volt
– (2) 350C VIAIR Compressors w/Thermal Overload Protectors– Permanent Magnetic Motor
– 30ft. Coil Hose with Quick Connects– Duty Cycle: 100% @ 100 PSI
– Tire Inflation Gun with 160 PSI Gauge– Max. Working Pressure: 150 PSI
– Dash Panel Gauge with ON/OFF Switch– Max. Amp Draw: 37 Amps
– 0-220 PSI Pressure Regulator– Ingress Protection Rating: IP67
– Blow Gun Air Tool–
– Sealed Pressure Switch (110 PSI on, 145 PSI off)–
– (2) 40-amp Relays–
– (2) T-Fittings (1/4” (M) x 1/4″ (F) x 1/8” (F))–
– 1/4” Quick Connect Stud (F)–
– 1/4” Quick Connect Coupler (F)–
– 1/4” 175 PSI Safety Valve–
– 1/4” Drain Cock–
– (2) 1/8” BSP to 1/4” NPT–
– (4) 1/4” Compression Fittings–
 – 20ft. 12-Gauge Wire with Inline Fuse Holder–
 – 4” Strip of Continuous Grommet Material–
– Accessory Airline–
 – Electrical Connections–
All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

Performance Data

PSICFMABARLPMA
0
2.6823
0
76.023
10
2.3026
1.064.028
20
2.2229
2.060.031
30
2.1231
3.055.034
40
1.9833
4.051.535
50
1.8734
5.048.036
60
1.8035
6.045.537
70
1.7335
7.043.037
80
1.6636
8.040.037
90
1.5636
9.036.037
100
1.523710.031.537
110
1.4537


120
1.3837


130
1.2737


140
1.1737


150
1.0637


* Supply Voltage: 13.8 Volts

Fill Rates

2.0 Gallon TankFill Rate
0 to 145 PSI1 min. 40 sec. (± 05 sec.)
110 to 145 PSI32 sec. (± 03 sec.)
35″ x 12.5″Fill Rate
0 to 30 PSI4 min. 40 sec. (± 10 sec.)
15 to 30 PSI2 min. 20 sec. (± 05 sec.)
37″ x 12.5″Fill Rate
0 to 30 PSI5 min. 00 sec. (± 15 sec.)
15 to 30 PSI2 min. 40 sec. (± 10 sec.)
