100C Compressor Kit

100C Compressor Kit (12V, 15% Duty, Sealed)

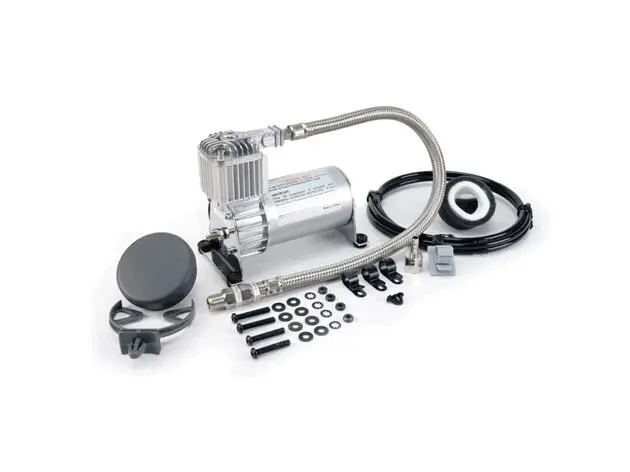

VIAIR's 100C Compressor comes with a 1.5 ft. stainless steel braided leader hose, swivel fitting, a 1/4" NPT Male Check valve, rubber isolated mounting feet, hardware, air filter and insulated electric terminals. This oil-less air compressor is rated at 13.8 volts from a charging car battery and is typically paired with air tanks 1.0 gallon or less.

Features & Specifications

Features	Specifications
– Thermal Overload Protector	– 12-Volt
– Check Valve	– Permanent Magnetic Motor
– Vibration Isolators	– Duty Cycle: 15% @ 100 PSI
– Mounting Hardware	– Max. Working Pressure: 130 PSI
– Stainless Steel Braided Leader Hose	– Max. Air Tank Size: 1.0 Gallon
– Air Line for Remote Mount Air Filter	– Max. 12V Amp Draw: 14 Amps
– Remote Mount Air Filter Assembly	– Ingress Protection Rating: IP54
– (2) Replacement Air Filter Elements	– Dimensions: 6.35″L x 3.3″W x 4.9″H
– Installation Instructions	– Net Weight: 3.55 lbs.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	1.27	9	0	36.0	9
10	0.90	10	1.0	25.0	10
20	0.85	11	2.0	22.5	11
30	0.79	11	3.0	21.0	12
40	0.76	12	4.0	20.0	13
50	0.72	12	5.0	18.3
60	0.71	13	6.0	17.0	12
70	0.67	13	7.0	15.0	12
80	0.64	12	8.0	13.7	12
90	0.59	12	9.0	12.3	12
100	0.55	12
110	0.52	12
120	0.48	12
130	0.45	12

* Supply Voltage: 13.8 Volts

Fill Rates

0.5 Gallon Tank	Fill Rate
0 to 105 PSI	50 sec. (± 05 sec.)
85 to 105 PSI	10 sec. (± 03 sec.)
0 to 120 PSI	1 min. 00 sec. (± 05 sec.)
90 to 120 PSI	17 sec. (± 03 sec.)
1.0 Gallon Tank	Fill Rate
0 to 105 PSI	1 min. 40 sec. (± 10 sec.)
85 to 105 PSI	25 sec. (± 05 sec.)
0 to 120 PSI	2 min. 00 sec. (± 10 sec.)
90 to 120 PSI	35 sec. (± 05 sec.)

0.5 Gallon Tank	Fill Rate
0 to 105 PSI	50 sec. (± 05 sec.)
85 to 105 PSI	10 sec. (± 03 sec.)
0 to 120 PSI	1 min. 00 sec. (± 05 sec.)
90 to 120 PSI	17 sec. (± 03 sec.)
1.0 Gallon Tank	Fill Rate
0 to 105 PSI	1 min. 40 sec. (± 10 sec.)
85 to 105 PSI	25 sec. (± 05 sec.)
0 to 120 PSI	2 min. 00 sec. (± 10 sec.)
90 to 120 PSI	35 sec. (± 05 sec.)
