100C Compressor Kit (12V, 15% Duty, Sealed)

$ 162.25 162.25 USD $ 162.25

$ 162.25

    This combination does not exist.

    Contact Us



    Barcode: 818114000102
    Shipping Weight: 5 lb
    Internal Reference: VA-10010
    Brand: Viair
    Manufacture Part Number: 10010

    100C Compressor Kit (12V, 15% Duty, Sealed)

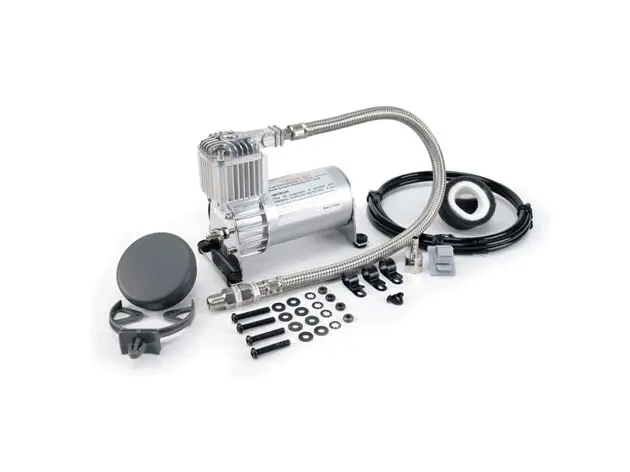

    VIAIR's 100C Compressor comes with a 1.5 ft. stainless steel braided leader hose, swivel fitting, a 1/4" NPT Male Check valve, rubber isolated mounting feet, hardware, air filter and insulated electric terminals. This oil-less air compressor is rated at 13.8 volts from a charging car battery and is typically paired with air tanks 1.0 gallon or less.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – Check Valve– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 15% @ 100 PSI
    – Mounting Hardware– Max. Working Pressure: 130 PSI
    – Stainless Steel Braided Leader Hose– Max. Air Tank Size: 1.0 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 14 Amps
    – Remote Mount Air Filter Assembly– Ingress Protection Rating: IP54
    – (2) Replacement Air Filter Elements– Dimensions: 6.35″L x 3.3″W x 4.9″H
    – Installation Instructions– Net Weight: 3.55 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		1.279
    		0
    		36.09
    10
    		0.9010
    		1.025.010
    20
    		0.8511
    		2.022.511
    30
    		0.7911
    		3.021.012
    40
    		0.7612
    		4.020.013
    50
    		0.7212
    		5.018.3
    60
    		0.7113
    		6.017.012
    70
    		0.6713
    		7.015.012
    80
    		0.64128.013.712
    90
    		0.59129.012.312
    100
    		0.5512


    110
    		0.5212


    120
    		0.4812


    130
    		0.4512


    * Supply Voltage: 13.8 Volts

    Fill Rates

    0.5 Gallon TankFill Rate
    0 to 105 PSI50 sec. (± 05 sec.)
    85 to 105 PSI10 sec. (± 03 sec.)
    0 to 120 PSI1 min. 00 sec. (± 05 sec.)
    90 to 120 PSI17 sec. (± 03 sec.)
    1.0 Gallon TankFill Rate
    0 to 105 PSI1 min. 40 sec. (± 10 sec.)
    85 to 105 PSI25 sec. (± 05 sec.)
    0 to 120 PSI2 min. 00 sec. (± 10 sec.)
    90 to 120 PSI35 sec. (± 05 sec.)
    0.5 Gallon TankFill Rate
    0 to 105 PSI50 sec. (± 05 sec.)
    85 to 105 PSI10 sec. (± 03 sec.)
    0 to 120 PSI1 min. 00 sec. (± 05 sec.)
    90 to 120 PSI17 sec. (± 03 sec.)
    1.0 Gallon TankFill Rate
    0 to 105 PSI1 min. 40 sec. (± 10 sec.)
    85 to 105 PSI25 sec. (± 05 sec.)
    0 to 120 PSI2 min. 00 sec. (± 10 sec.)
    90 to 120 PSI35 sec. (± 05 sec.)
