100C Compressor Kit w/o Leaderhose & Check Valve

(0 review)

100C Compressor Kit (12V, 15% Duty, Sealed, w/o Leader Hose, w/o Check Valve)

$ 150.50 $ 150.50

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 818114000140
Shipping Weight: 4 lb
Internal Reference: VA-10014
Brand: Viair
Manufacture Part Number: 10014

100C Compressor Kit (12V, 15% Duty, Sealed, w/o Leader Hose, w/o Check Valve)

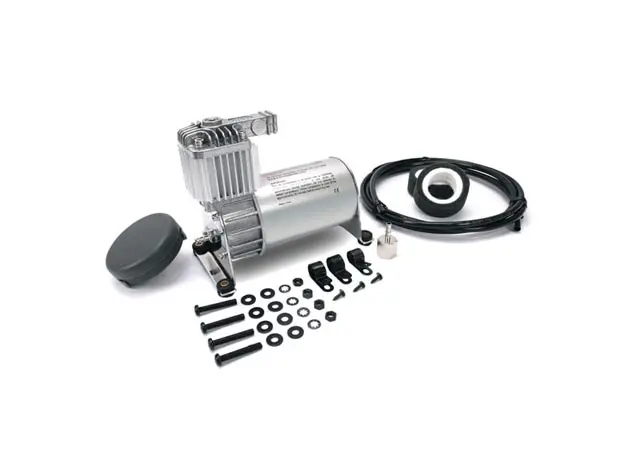

This version of VIAIR's 100C Compressor comes with rubber isolated mounting feet, hardware, air filter and insulated electric terminals. This oil-less air compressor is rated at 13.8 volts from a charging car battery and is typically paired with air tanks 1.0 gallon or less.

Features & Specifications

Features
Speficication
– Thermal Overload Protector– 12-Volt
– Vibration Isolators– Permanent Magnetic Motor
– Mounting Hardware– Duty Cycle: 15% @ 100 PSI
– Air Line for Remote Mount Air Filter– Max. Working Pressure: 130 PSI
– Remote Mount Air Filter Assembly– Max. Air Tank Size: 1.0 Gallon
– (2) Replacement Air Filter Elements– Max. 12V Amp Draw: 14 Amps
– Installation Instructions– Ingress Protection Rating: IP54

– Dimensions: 6.35″L x 3.3″W x 4.9″H

– Net Weight: 3.55 lbs.
PSICFMABARLPMA
0
1.279
0
36.09
10
0.9010
1.025.010
20
0.8511
2.022.511
30
0.7911
3.021.012
40
0.7612
4.020.013
50
0.7212
5.018.312
60
0.7113
6.017.012
70
0.6713
7.015.012
80
0.6412
8.013.712
90
0.59129.012.312
100
0.5512


110
0.5212


120
0.4812


130
0.4512


* Supply Voltage: 13.8 Volts

0.5 Gallon TankFill Rate
0 to 105 PSI50 sec. (± 05 sec.)
85 to 105 PSI10 sec. (± 03 sec.)
0 to 120 PSI1 min. 00 sec. (± 05 sec.)
90 to 120 PSI17 sec. (± 03 sec.)
1.0 Gallon TankFill Rate
0 to 105 PSI1 min. 40 sec. (± 10 sec.)
85 to 105 PSI25 sec. (± 05 sec.)
0 to 120 PSI2 min. 00 sec. (± 10 sec.)
90 to 120 PSI35 sec. (± 05 sec.)
