100C Chrome Compressor Kit w/Omega Bracket

https://universalair-uas.odoo.com/web/image/product.template/228/image_1920?unique=554c4ac
(0 review)

100C Chrome Compressor Kit w/ Omega Mounting Bracket (12V, 15% Duty, Sealed)

$ 142.95 142.95000000000002 USD $ 142.95

$ 142.95

    This combination does not exist.

    Contact Us



    Barcode: 818114000195
    Shipping Weight: 4 lb
    Internal Reference: VA-10016
    Brand: Viair
    Manufacture Part Number: 10016

    100C Chrome Compressor Kit w/Omega Bracket

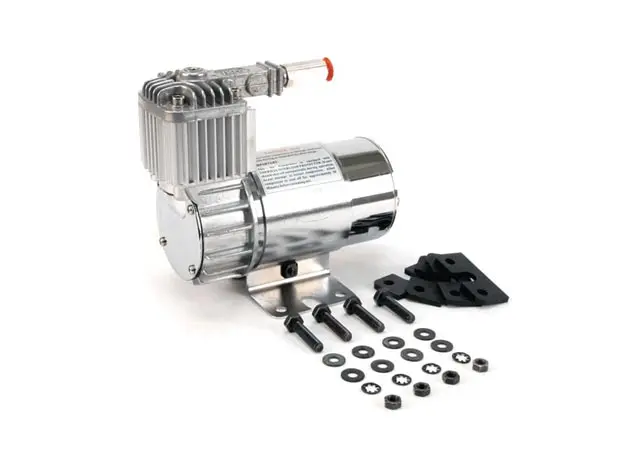

    This version of VIAIR's 100C Compressor comes with an external check valve, chrome finish, an omega mounting bracket, rubber isolated mounting feet, hardware and insulated electric terminals. Air is drawn in through a porous gasket, it does not include an air filter. This oil-less air compressor is rated at 13.8 volts from a charging car battery and is typically paired with air tanks 1.0 gallon or less.

    Features & Specifications

    Features
    		Specification
    – Thermal Overload Protector– 12-Volt
    – Omega Bracket– Permanent Magnetic Motor
    – Check Valve– Duty Cycle: 15% @ 100 PSI
    – Vibration Isolators– Max. Working Pressure: 130 PSI
    – Mounting Hardware– Max. Air Tank Size: 1.0 Gallon
    – Installation Instructions
    		– Max. 12V Amp Draw: 14 Amps

    		– Ingress Protection Rating: IP54

    		– Dimensions: 6.0″L x 3.5″W x 5.3″H

    		– Net Weight: 3.45 lbs.
    PSICFMABARLPMA
    0
    		1.2711
    		0
    		36.09
    10
    		0.9011
    		1.025.010
    20
    		0.8512
    		2.022.511
    30
    		0.7912
    		3.021.012
    40
    		0.7613
    		4.020.013
    50
    		0.7213
    		5.018.312
    60
    		0.71126.017.012
    70
    		0.67127.015.012
    80
    		0.64128.013.712
    90
    		0.59129.012.312
    100
    		0.5512


    110
    		0.5212


    120
    		0.4812


    130
    		0.4512


    * Supply Voltage: 13.8 Volts

    0.5 Gallon TankFill Rate
    0 to 105 PSI50 sec. (± 05 sec.)
    85 to 105 PSI10 sec. (± 03 sec.)
    0 to 120 PSI1 min. 00 sec. (± 05 sec.)
    90 to 120 PSI17 sec. (± 03 sec.)
    1.0 Gallon TankFill Rate
    0 to 105 PSI1 min. 40 sec. (± 10 sec.)
    85 to 105 PSI25 sec. (± 05 sec.)
    0 to 120 PSI2 min. 00 sec. (± 10 sec.)
    90 to 120 PSI35 sec. (± 05 sec.)
