2.0 Gal. Tank Air Source Kit High Flow-150 (12V, 150 PSI Compressor)

$ 299.95 299.95 USD $ 299.95

$ 299.95

    This combination does not exist.

    Contact Us



    Barcode: 818114002014
    Shipping Weight: 24 lb
    Internal Reference: VA-20005
    Brand: Viair
    Manufacture Part Number: 20005

    2.0 Gal. Tank Air Source Kit High Flow-150 (12V, 150 PSI Compressor)

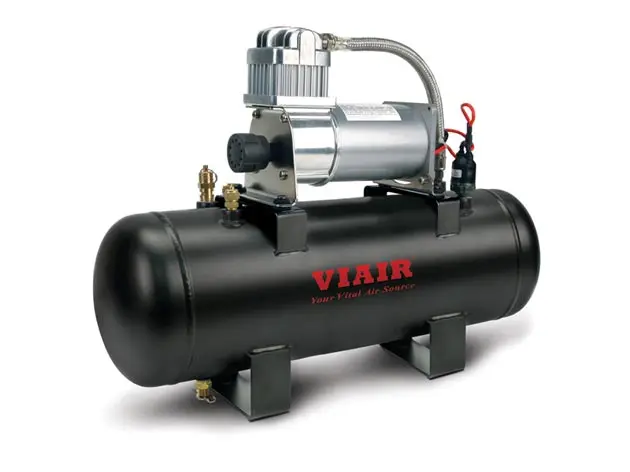

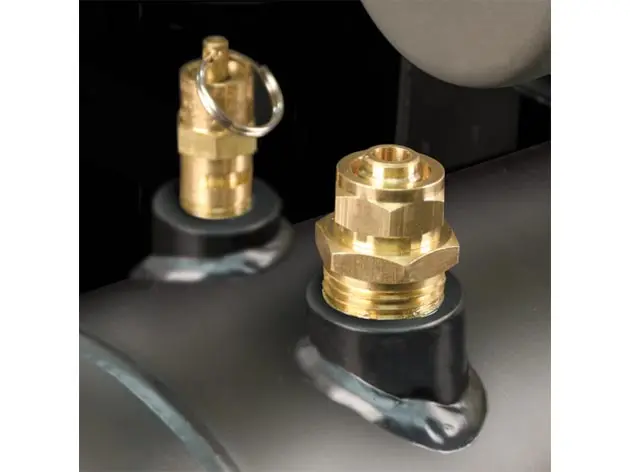

    150 PSI Air Source Kits come with a powerful, 30% duty cycle, 280C VIAIR compressor mounted on a 150 PSI-rated 2.0 gallon air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20005 / 110-150 PSI). The 150 PSI Air Source Kit comes complete with a 1/4" NPT brass drain cock, 1/4" NPT ASME coded and certified safety valve, 1/2" NPT port compression fitting for 3/8" air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.

    Features & Specifications

    Features
    		Specifications
    – 280C Pewter Air Compressor– 12-Volt
    – Thermal Overload Protector– Permanent Magnetic Motor
    – 2.0 Gallon Matte Black Air Tank– Duty Cycle: 30% @ 100 PSI

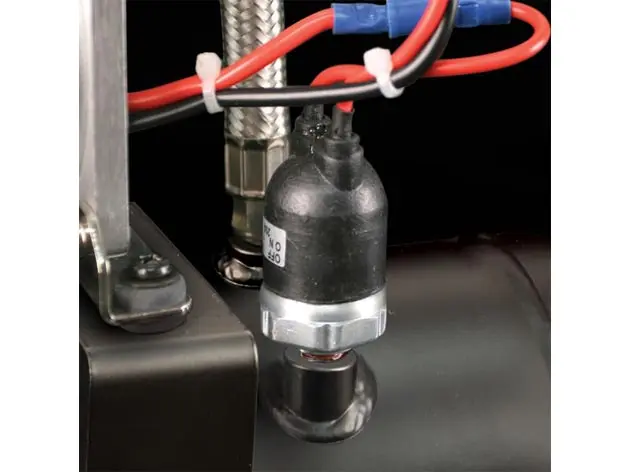

    – Pressure Switch (110 PSI On / 145 PSI Off)– Max. Working Pressure: 150 PSI

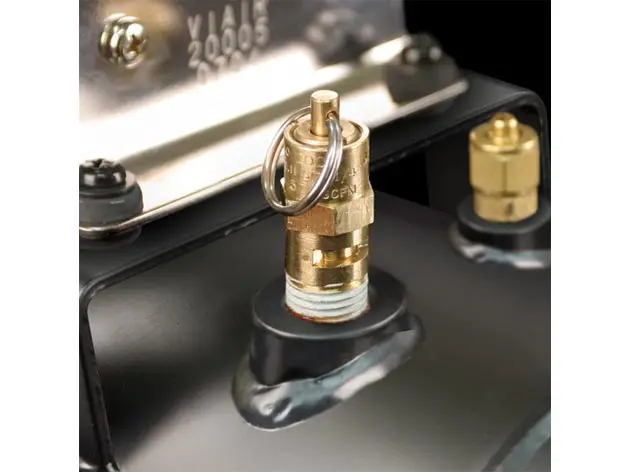

    – Safety Valve (175 PSI)– Max. Amp Draw: 19 Amps

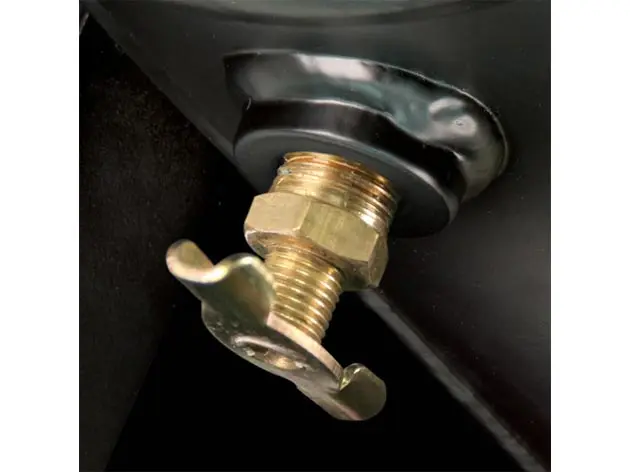

    – Drain Cock– Ingress Protection Rating: IP54
    – Leader Hose with Check Valve– Dimensions: 18.9″L x 5.9″W x 13.7″H

    		– Net Weight: 19.75 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		1.5910
    		0
    		45.010
    10
    		1.4912
    		1.040.213
    20
    		1.3313
    		2.032.114
    30
    		1.1114
    		3.029.015
    40
    		1.0415
    		4.026.416
    50
    		0.9915
    		5.024.216
    60
    		0.9216
    		6.022.017
    70
    		0.8716
    		7.021.019
    80
    		0.8117
    		8.019.418
    90
    		0.7617
    		9.017.517
    100
    		0.7419
    		10.015.317
    110
    		0.7119



    120
    		0.6718


    130
    		0.6217



    140
    		0.5717



    150
    		0.51
    		17



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 145 PSI3 min. 40 sec.(± 10 sec.)
    110 to 145 PSI1 min. 15 sec. (± 05 sec.)
