2.0 Gal. Tank Air Source Kit High Flow-150

(0 review)

2.0 Gal. Tank Air Source Kit High Flow-150 (12V, 150 PSI Compressor)

$ 378.75 $ 378.75

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 818114002014
Shipping Weight: 24 lb
Internal Reference: VA-20005
Brand: Viair
Manufacture Part Number: 20005

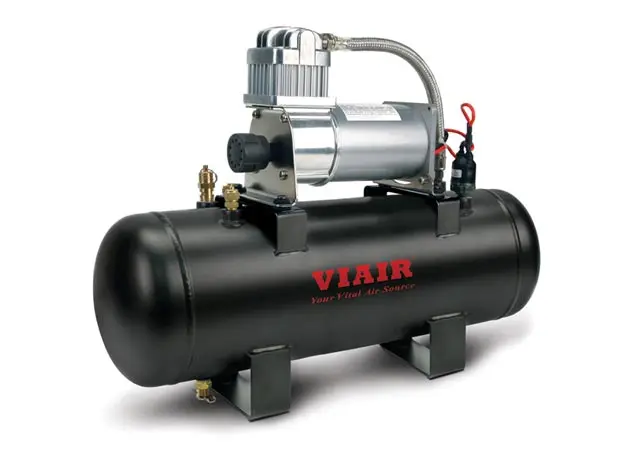

2.0 Gal. Tank Air Source Kit High Flow-150 (12V, 150 PSI Compressor)

150 PSI Air Source Kits come with a powerful, 30% duty cycle, 280C VIAIR compressor mounted on a 150 PSI-rated 2.0 gallon air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20005 / 110-150 PSI). The 150 PSI Air Source Kit comes complete with a 1/4" NPT brass drain cock, 1/4" NPT ASME coded and certified safety valve, 1/2" NPT port compression fitting for 3/8" air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.

Features & Specifications

Features
Specifications
– 280C Pewter Air Compressor– 12-Volt
– Thermal Overload Protector– Permanent Magnetic Motor
– 2.0 Gallon Matte Black Air Tank– Duty Cycle: 30% @ 100 PSI
– Pressure Switch (110 PSI On / 145 PSI Off)– Max. Working Pressure: 150 PSI
– Safety Valve (175 PSI)– Max. Amp Draw: 19 Amps
– Drain Cock– Ingress Protection Rating: IP54
– Leader Hose with Check Valve– Dimensions: 18.9″L x 5.9″W x 13.7″H

– Net Weight: 19.75 lbs.

Performance Data

PSICFMABARLPMA
0
1.5910
0
45.010
10
1.4912
1.040.213
20
1.3313
2.032.114
30
1.1114
3.029.015
40
1.0415
4.026.416
50
0.9915
5.024.216
60
0.9216
6.022.017
70
0.8716
7.021.019
80
0.8117
8.019.418
90
0.7617
9.017.517
100
0.7419
10.015.317
110
0.7119



120
0.6718


130
0.6217



140
0.5717



150
0.51
17



* Supply Voltage: 13.8 Volts

Fill Rates

2.0 Gallon TankFill Rate
0 to 145 PSI3 min. 40 sec.(± 10 sec.)
110 to 145 PSI1 min. 15 sec. (± 05 sec.)
